Dakota Digital Cruise Control for GM LS Drive-by-Wire Engines - Direct VSS Connection - CRC-2000
Direct plug-in cruise control for GM LS drive-by-wire engines, the CRC Series plugs directly into your OEM LS throttle pedal for not only simple installation, but reliable operation and connectivity. Self-learning calibration makes this system a snap to use, with no DIP switches or charts to follow!
The CRC-2000 variation features a discrete VSS input (fixed 4,000 PPM, your application may require the use of an SGI-100BT if a 4,000 PPM signal is not present, SGI-100BT is NOT included, sold separately), usable when a diagnostic connector is unavailable. While still plugging directly into the throttle pedal in these LS-based systems, the CRC-2000 provides a more universal approach, perfectly suited to cases with a mixture of LS-based OEM and aftermarket powertrain control components.
The CRC-2000 fits:
2008- up GM Full Size Truck/Van/SUV with throttle pedal contain inline 6-pin connector
2008-2010 Pontiac G8 GT (verify pedal connector type first)
GM Connect & Cruise packages
* Does not fit Pontiac GTO or Holden applications
**The CRC-2000 kits are not considered universal cruise control packages, their proper operation can only be expected when interfaced with the LS-based applications outlined above. Any ECM speed calibration, or software updates which have affected the pedal specifications may prevent the CRC-2000 from functioning.
Your choice of switch/turn signal level is supplied. Inputs for power, ground, and a connection to your existing brake light switch are all that is required (along with VSS input on CRC-2000). Additionally, an output is provided for a cruise-on indicator.
Module measures 3.5" x 3.5" x .75"

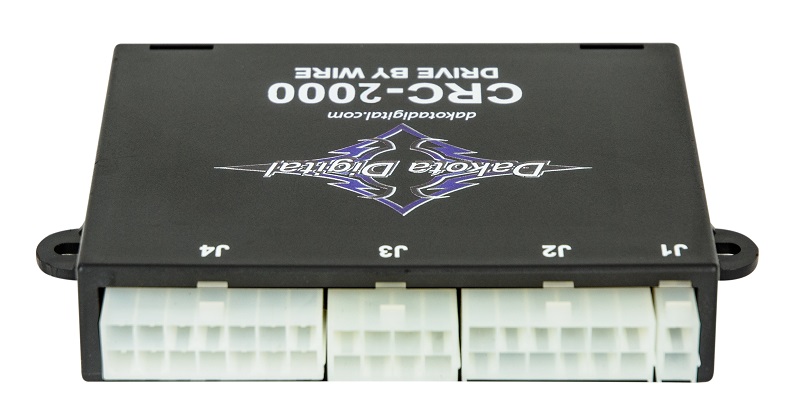

Top of Unit:
Bottom of Unit:
When you go to pay for this item, please choose which of the following handles you need (choose one):
HND-1 - Universal Cutoff Handle - Secures to existing turn signal handle shaft:
HND-2 - Dash Mount Switch - Can be secured to or under dash for hidden operation. Unit Measures 2" wide by 1-3/8" high:
HND-3 - Replacement GM Handle - Secures with single screw through flat end:
