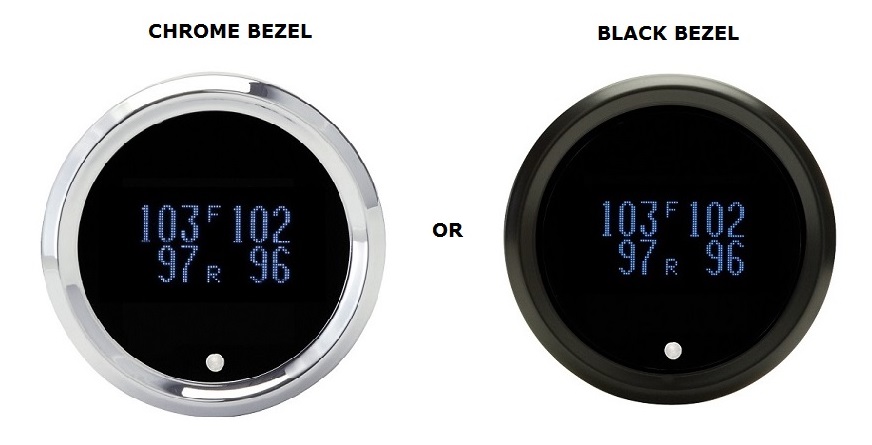

This listing is for one SLX-19-7 Quad Air Pressure Gauge from Dakota Digital, with either a BLACK or a CHROME bezel.

The SLX-19-7 Quad Air Pressure gauge can monitor and simultaneously display the front and rear pressure on front/ rear or four wheel independent air ride systems to display each air bag for proper pressure. Selectable second screen displays tank pressure.

Dakota Digital Odyssey Series II instruments offer a high brightness, non-glare vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Odyssey Series II instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!

Range:
0- 300 psi.

A single sensor will be required for each pressure reading. For example, a full independent (front/back/side to side) air system would require 4 sensors (1 for each airbag). A fifth sensor (SEN-03-9)  can be added to monitor the air tank pressure if desired.

Please note: The sensors are REQUIRED to make the gauge work, but they are NOT included with the gauge. They can be purchased separately in our store.

Resolution:
1 psi

• Separate control box for easy installation.
• User adjustable high and low warning points can trigger an external light or buzzer. (not included)
• Night dimming.
• Choice of either Chrome or Black bezel.
• Blue display.
• Machined aluminum housing.

The BIM-19-2 shown in the installation manual is INCLUDED with the gauge. The SEN-03-9 sensors are sold separately.



The following sensors can be purchased separately:
SEN-03-9 - Air Pressure Sensor 0-300psi, available for purchase separately
