Dakota Digital 1962-84 Toyota FJ RTX Instruments - RTX-62T-FJ-X
Please note: This system is a pre-order and may take 4-8 weeks before it goes out, though it may go out sooner. You can still purchase it now and it will go out as soon as it is built. If you want an updated time frame, please contact us before you purchase. Domestic orders will get shipped directly to the customer from the manufacturer, whereas International and Canadian orders will get sent to our shop first, which will add approx 4 business days to the estimated time frame. Please let us know if you have any questions!
Bring that 1962-84 Toyota FJ40 up to late model standards without disrupting the vintage vibe! A machined aluminum bezel is finished in a matte silver powdercoat to replace the stamped original piece, yet the whole assembly is a drop-in replacement for your stock FJ dash panel. The full-color TFT message center is nestled in the center of the speedometer while an LED bar graph tachometer arches around the outside of the gauge. The idea is 21st century tech with the appearance of stock equipment. Metric units can be had at no additional cost .(may take a few weeks longer to build), and diesel-interface components are also available!
*New Fully Machined Bezel included.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed, or just leave the vintage-looking tumbler odometer on the screen for a totally stock appearance. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Please scroll through the listing below for a more in-depth look at the RTX series and lots more pics!
MTX-62T-FJ-X metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take 8-12 weeks to build. If you want the metric version, just let us know when you make your purchase.
RTX System Includes:
Speedometer - 0-120 MPH (optional metric version 0-200 kmh).
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Digital Bar Graph Gauges
Tachometer - 0-8000 RPM
Digital Message Centers
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Estimated Range/Miles to Empty
0-60 MPH Timer (0-100 kmh)
1/4 and 1/8 mile time
1/4 and 1/8 mile end speed (trap speed)
High speed recall
High RPM recall

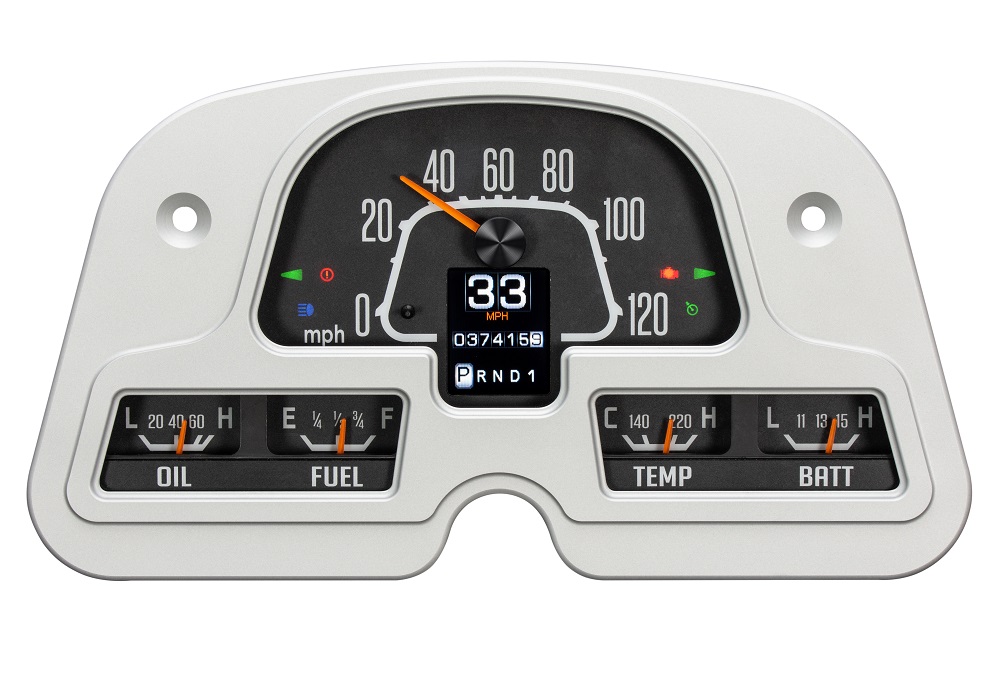

Turn Signals (Left/ Right)
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Two Auxiliary input indicators with user-programmable labels
Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
**Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
Both daytime and nighttime brightness can be easily controlled through the RTX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 (sold separately) is a common accessory to add this functionality.
With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the RTX Series lets you make the choice.
Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor / Generator - Replaces GM style speedometer cables with a 10 ft harness and Toyota drive adaptor (Tremec and Ford style adaptors available on request).
Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration and Use
Pushbutton Control - Dakota Digital instrument systems are programmed and operated by the push of a button. A two-sided rocker switch is included with each package; mount this switch in an easily accessible location when in the driving position. The rocker switch provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Once configured, this same switch is used to access the wealth of information located in the digital message centers.
Mobile App - RTX instrument systems can also be completely configured through the available mobile app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the RTX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.
Calibration - All calibration settings are handled through the included pushbutton switch or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer, GPS-50-2 is sold separately) through a few taps of the pushbuttons and a short test drive of the vehicle.
Which extra items that are not included with this kit does Dakota Digital recommend that you consider?
Because Dakota Digital includes the required sensors for the Oil Pressure, Water Temperature and Speedometer with all its instrument systems, in many cases no additional parts will be required. However, you may wish to consider the following optional items, available for purchase separately in our store:
All Instrument packages contain a gear shift indicator display allowing the transmission gear position (Park, Reverse, etc.) to be shown within the message center. The GSS-2000 accommodates automatic transmissions with 2- 4 forward gears and enjoys a simple and straightforward installation.
Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.
Dakota Digital instrument systems are designed to utilize a stock or aftermarket fuel level sensor. If a universal or replacement sensor is desired, the SEN-06-1 is a great choice.
The BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the instrument system, making installation a breeze.
More info about this system and pics are available below.

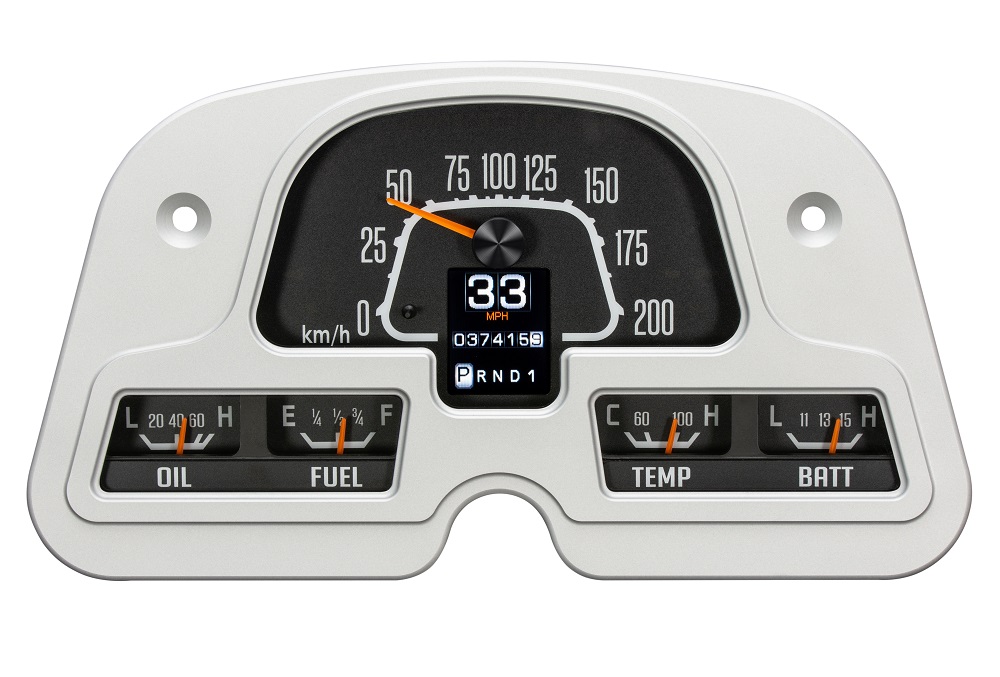

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take a few weeks longer to build.
The following pictures show examples of some of the user selectable backlighting color options:

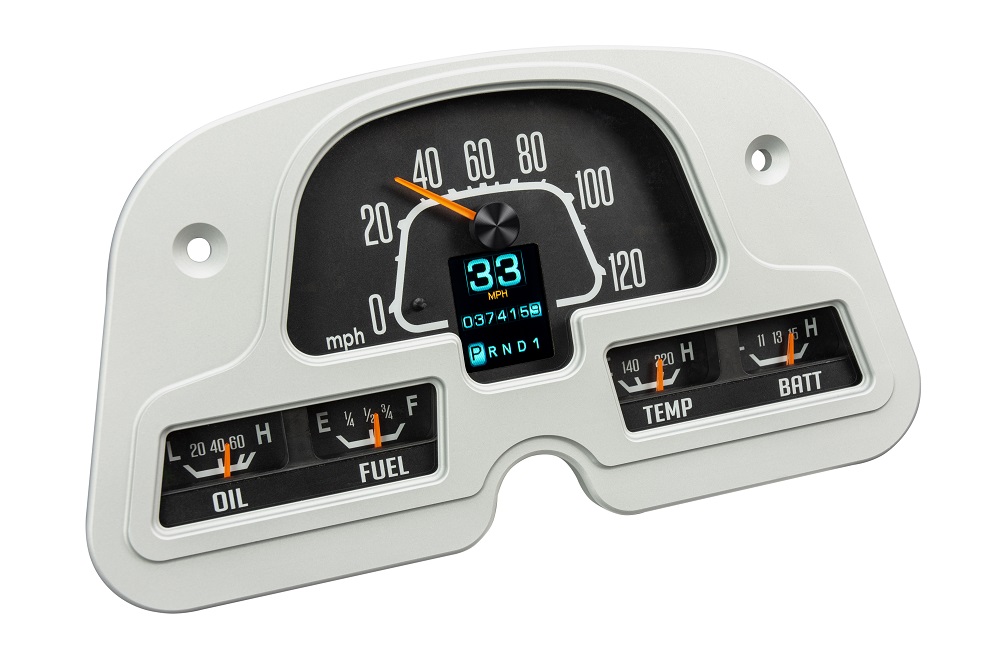

Side View, Wild Aqua Theme:
Side View, Yellow Flare Theme:
Emerald At Night:

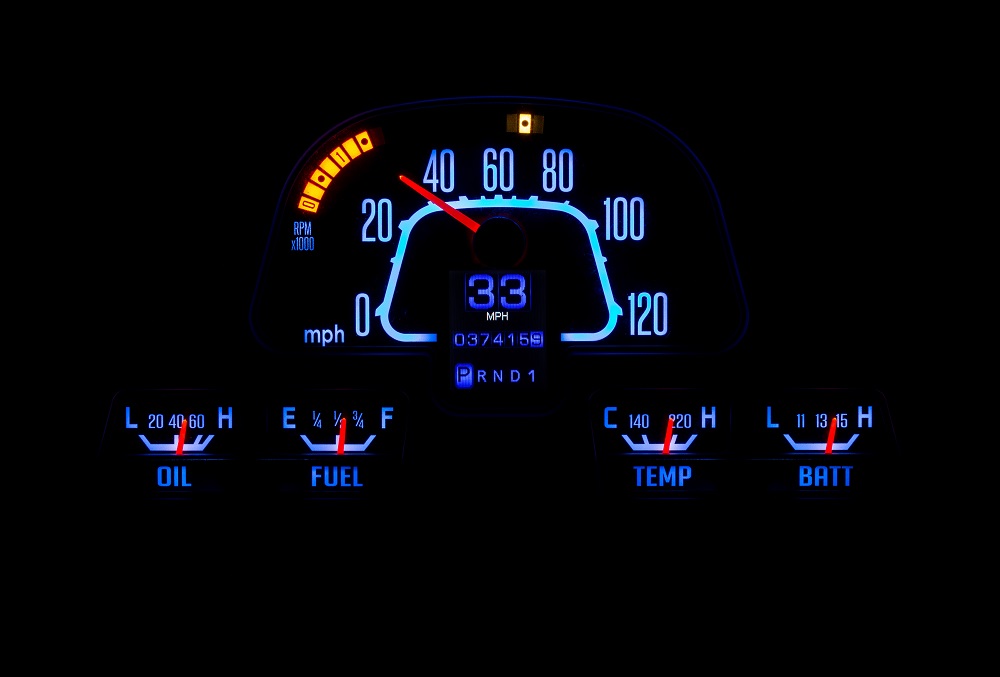

Ice and Fire Theme:

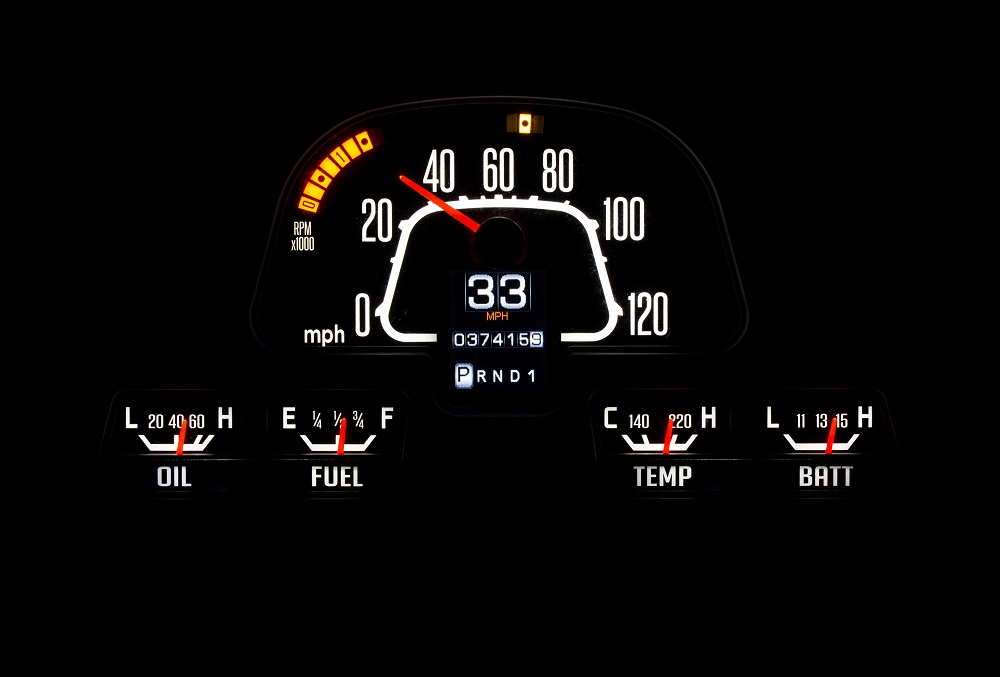

White Hot Theme:

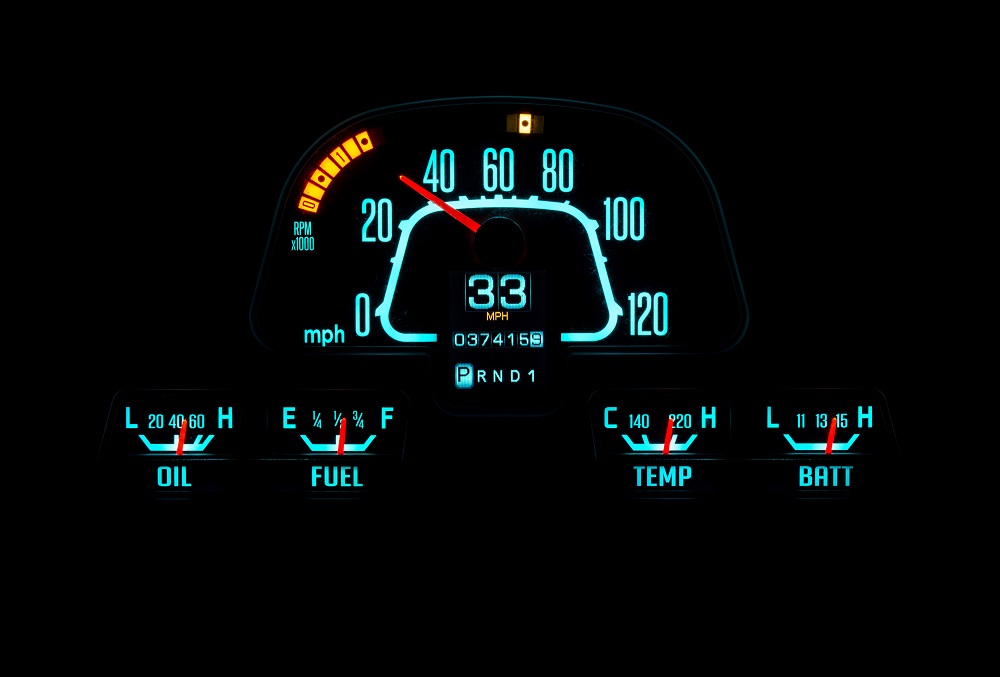

Wild Aqua Theme:

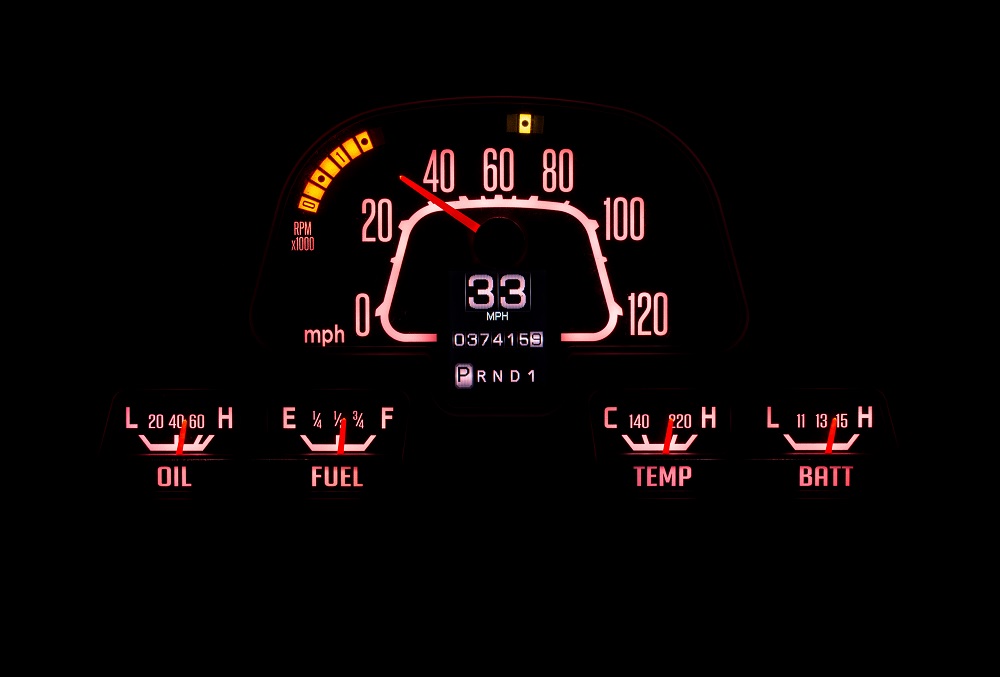

Wild Rose Theme:

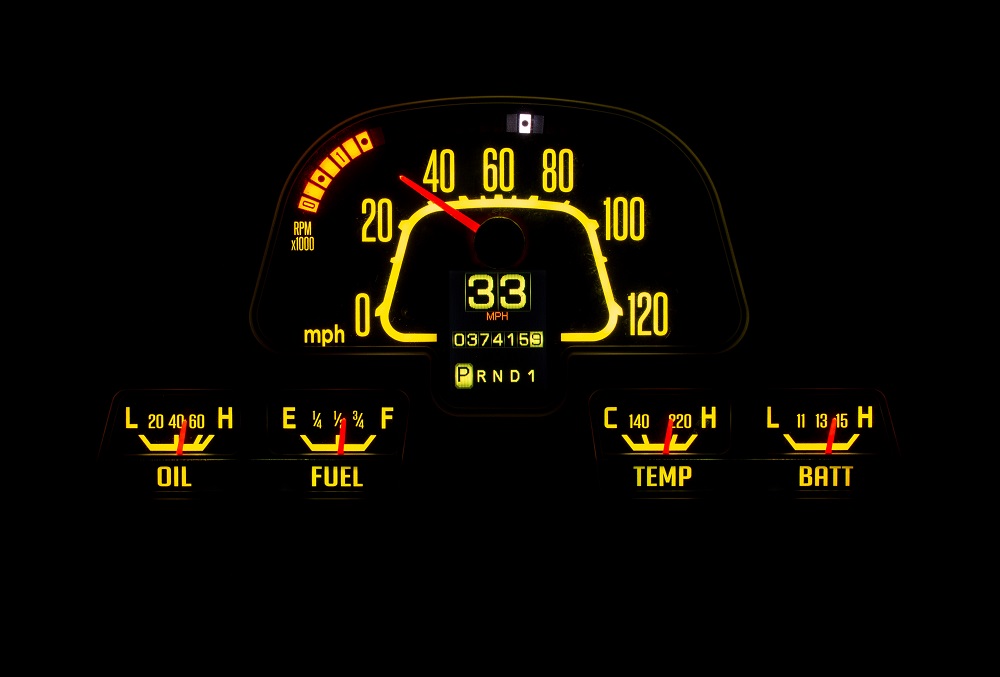

Yellow Flare Theme:

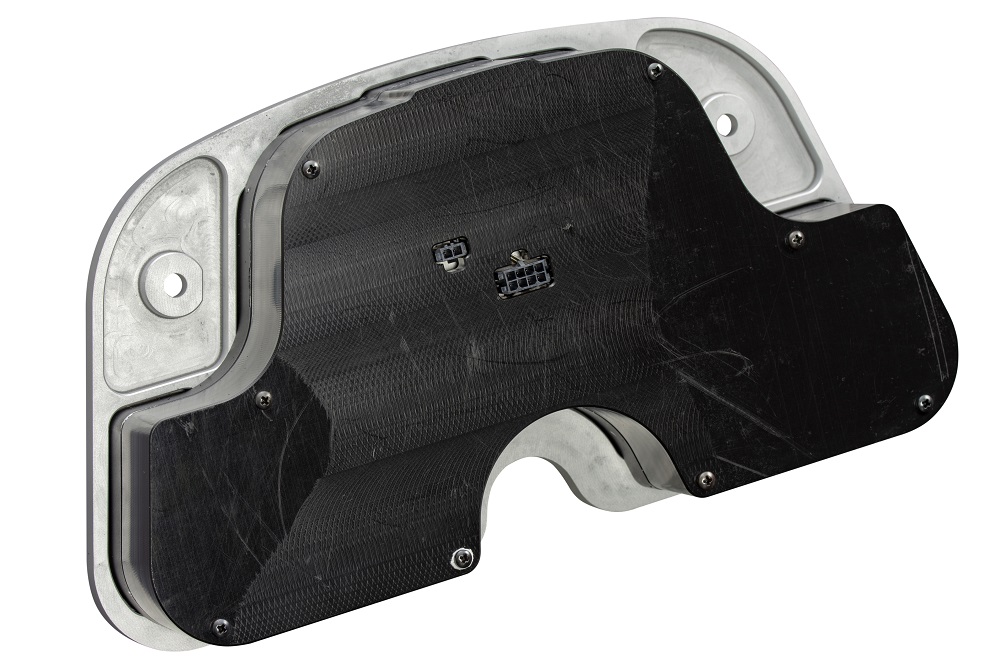

Back of Unit:
