Dakota Digital 1994-2004 Ford Mustang Analog Dash Gauge System VHX-94F-MUS

MSRP: $795.00
$755.25
(You save $39.75 )
(No reviews yet)
SKU:
VHX-94F-MUS
Condition:
New

Dakota Digital 1994-2004 Ford Mustang VHX Instruments - VHX-94F-MUS





First appearing in 1994, the SN95 Mustang dash was deemed acceptable to carry on all the way to 2004*. With their growing popularity, no doubt spurred on by LS and Coyote conversions, we just couldn’t ignore these cars any longer! Use your stock instrument housing and bezel for installation, and enjoy up-to-date, modern instrumentation that is compatible with nearly any drivetrain - stock or otherwise! Auxiliary readings (think: boost, trans temp and more) can be added and displayed in the LCD message centers (BIM expansion modules are sold separately in our store).

* Model years ’96-04 using the factory drivetrain may be required to disable the PATS system prior to removing the OEM gauge cluster. Removing the OEM gauge cluster prior to disabling the PATS system may result in a no start condition. Disabling the PATS system is typically done through aftermarket ECU tuning software. If you don’t have access to ECU tuning software you will need to contact your local vehicle performance shop to perform the PATS disable for you.

*Fits factory bezel, bezel/housing shown in any pics is NOT included, shown for illustrative purposes only. Requires original front bezel.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at Dakota Digital's facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

MHX-94F-MUS Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300
ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Comes with plug to block off stock Speedometer Cable output. Uses stock Ford Speed sensor.

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.








VHX-94F-MUS with SILVER ALLOY style and BLUE backlighting (bezel not included):

At Night:

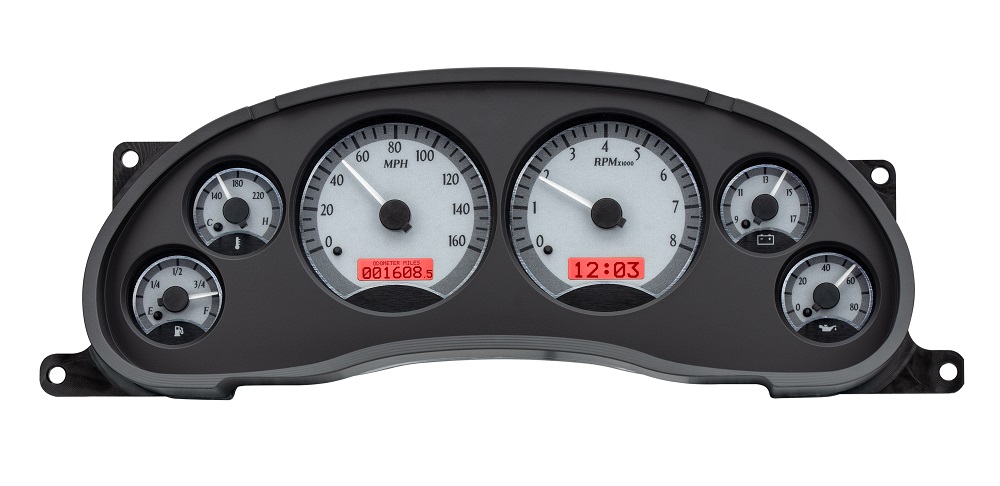

VHX-94F-MUS with SILVER ALLOY style and RED backlighting (bezel not included):

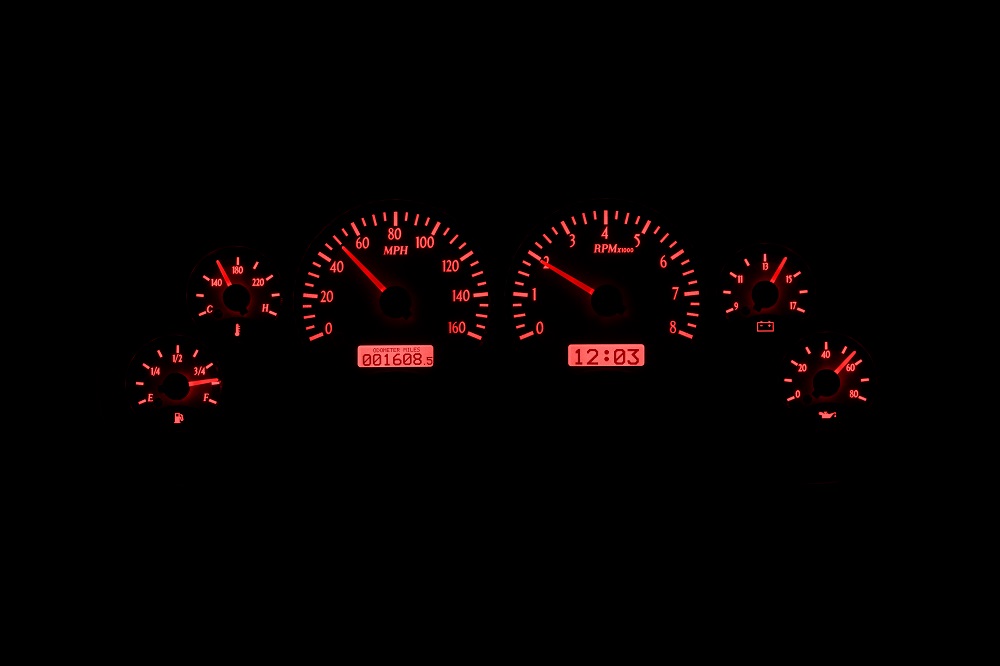

At Night:

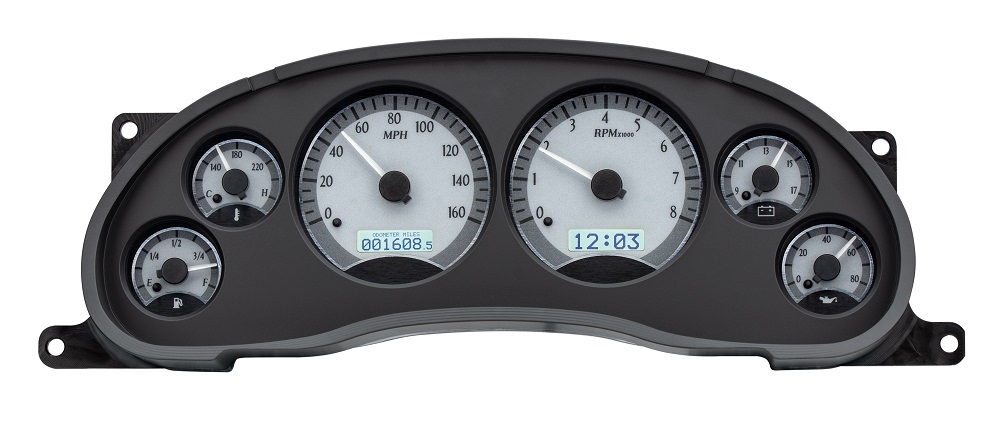

VHX-94F-MUS with SILVER ALLOY style and WHITE backlighting (bezel not included):

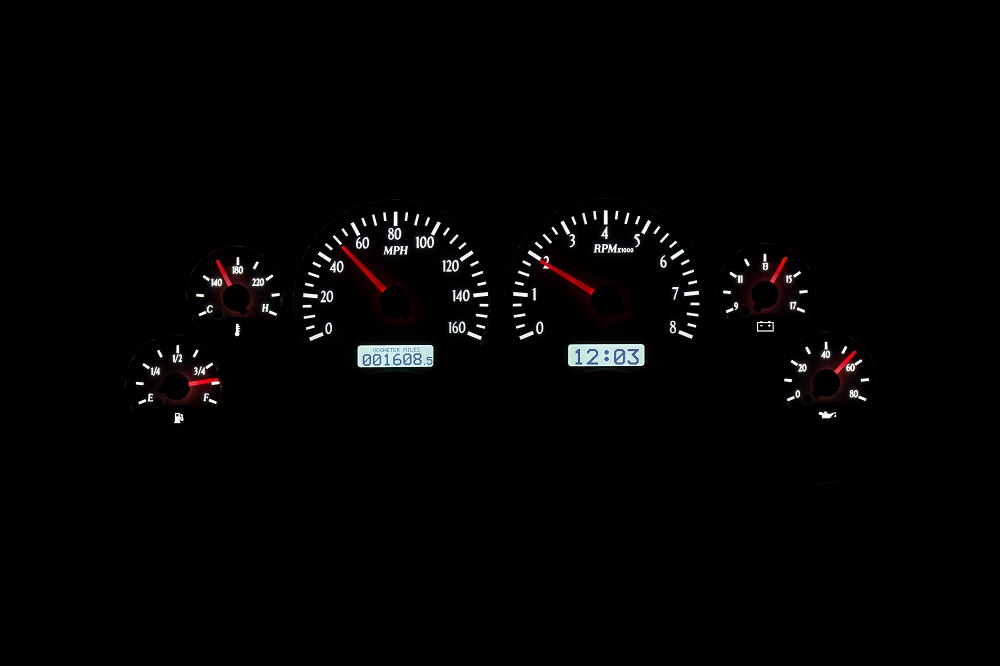

At Night:

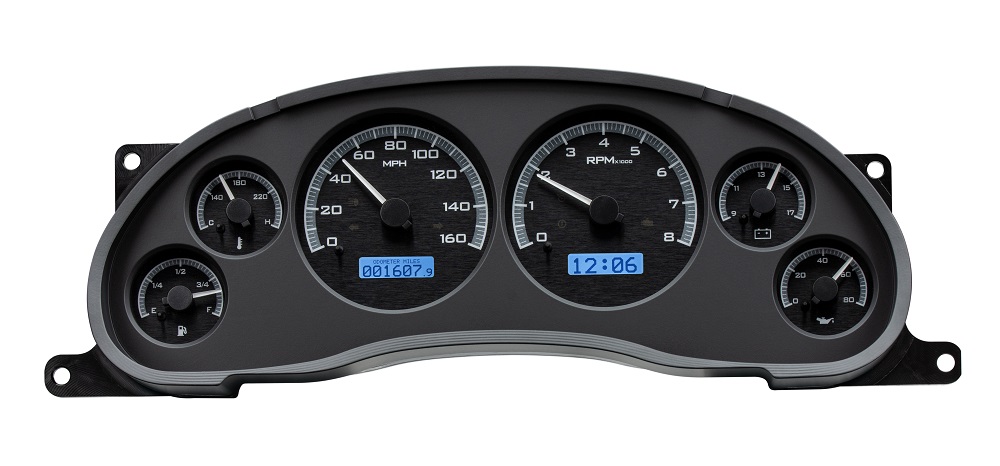

VHX-94F-MUS with BLACK ALLOY style and BLUE backlighting (bezel not included):

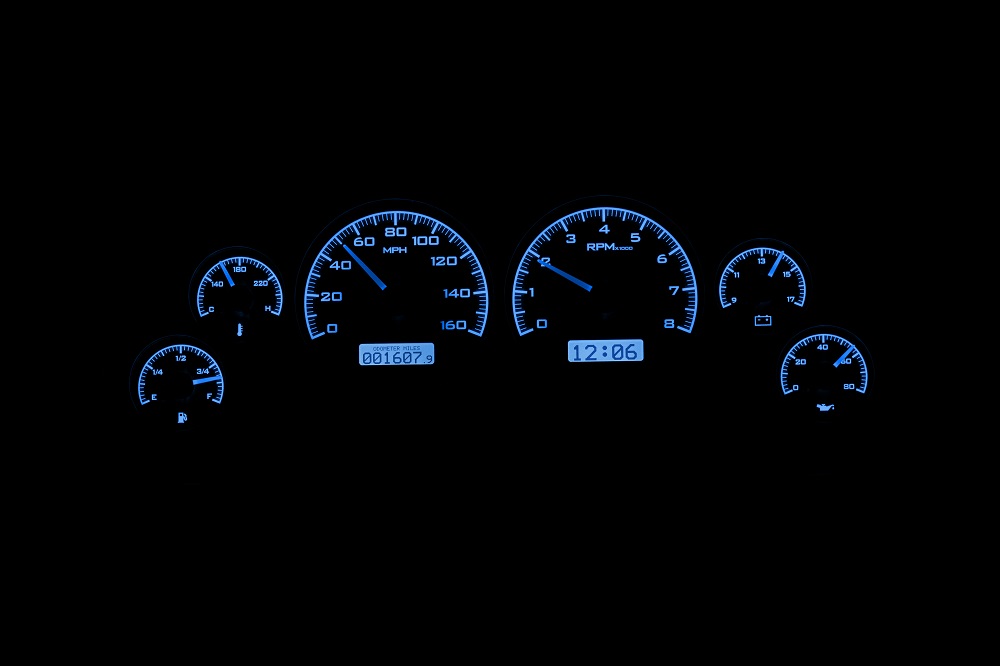

At Night:

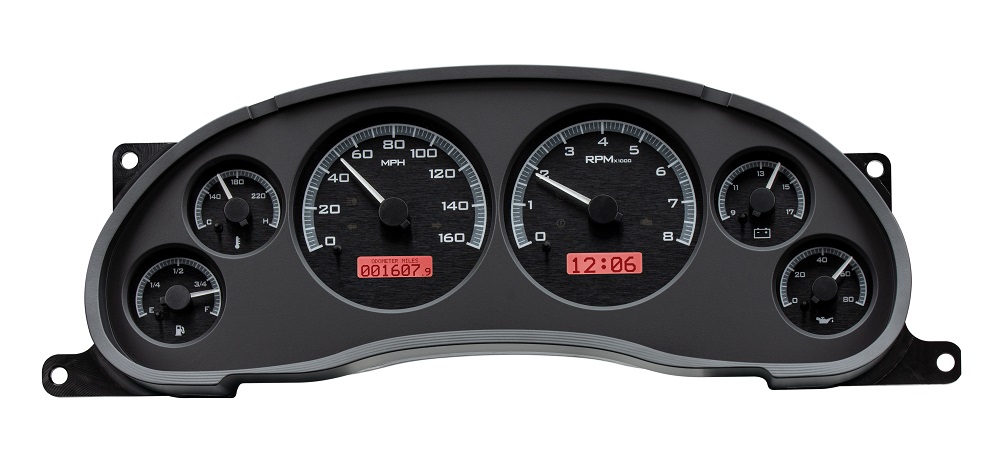

VHX-94F-MUS with BLACK ALLOY style and RED backlighting (bezel not included):

At Night:

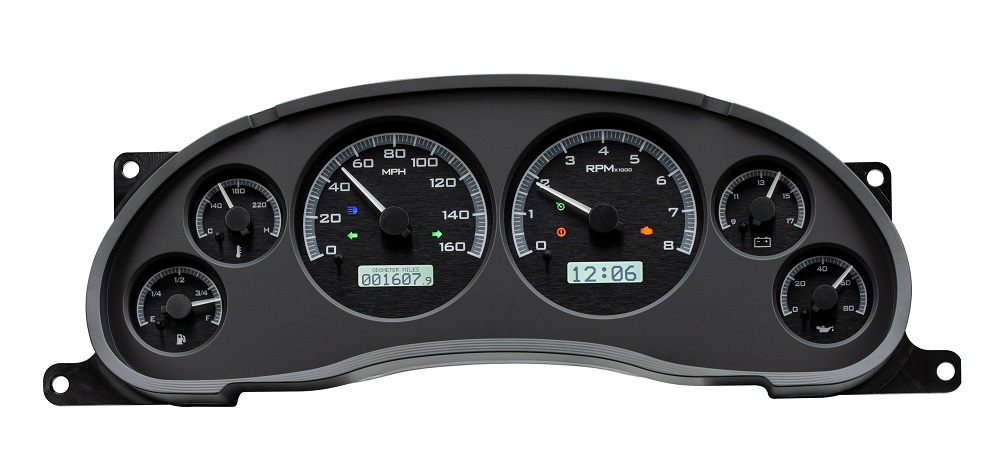

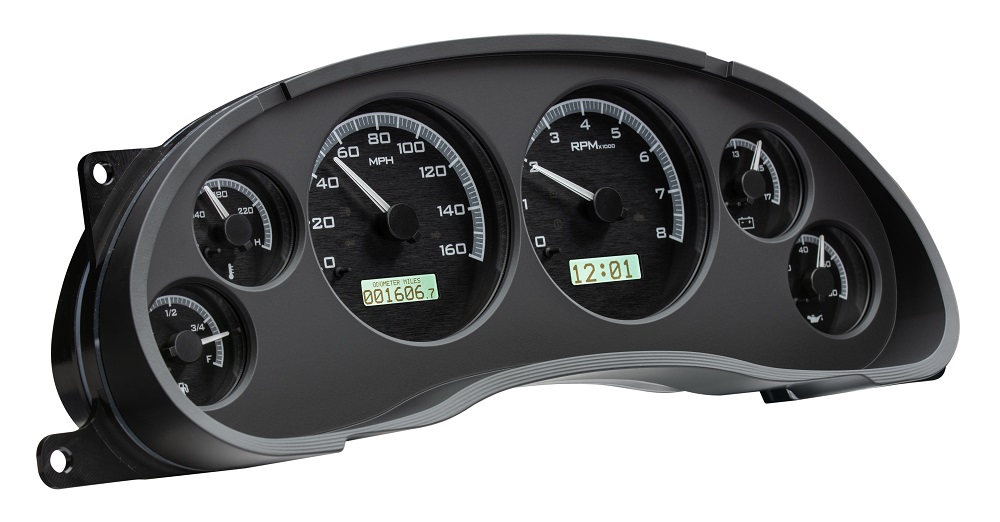

VHX-94F-MUS with BLACK ALLOY style and WHITE backlighting (bezel not included):

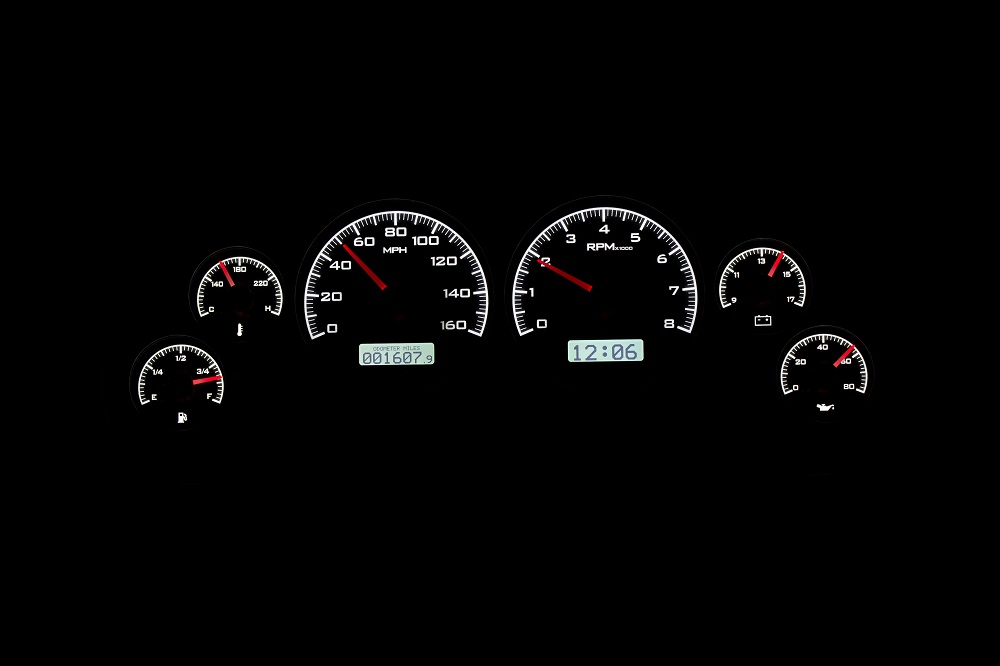

At Night:

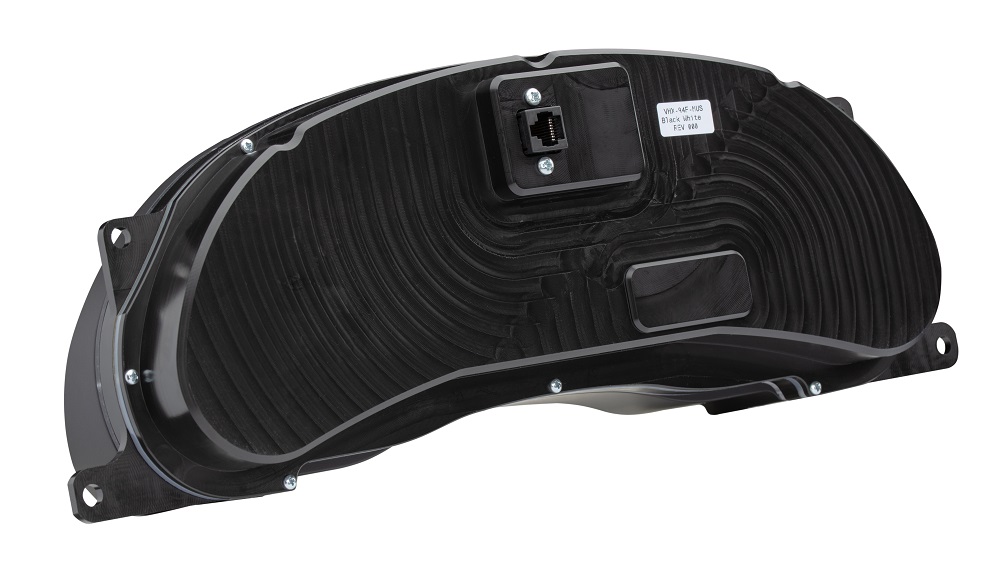

Back of Unit:




Limited Lifetime Warranty through manufacturer, see installation manual for details
