Dakota Digital 73-85 Jeep Wagoneer J-Trucks Analog Dash Gauge System VHX-73J-WAG

MSRP: $795.00
$755.25
(You save $39.75 )
(No reviews yet) Write a Review
SKU:
VHX-73J-WAG
Condition:
New

1973-85 Jeep Wagoneer & J-Trucks, 1984-85 Jeep Grand Wagoneer VHX Instruments

 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985


from Dakota Digital

VHX-73J-WAG






The new VHX Systems fit directly into the stock dash of the following vehicles without modification (bezel is NOT included).

1973- 85 Jeep Wagoneer
1984- 85 Jeep Grand Wagoneer
1973- 85 Jeep J-Trucks

This 6-gauge system includes a new, machined rear gauge housing, attaching directly to the backside of stock dash bezel.

Bezel shown in any pics is for illustrative purposes only, it is NOT included. Fits into stock dash.

VHX-73J-WAG fits original stock dash/ bezel/ fascia/ trim, not included. Image shown for reference only.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

VHX System Includes:

Analog Gauges

Speedometer - 0-120 MPH (optional metric version 0-195 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.






VHX-73J-WAG with SILVER ALLOY style and BLUE backlighting (bezel is NOT included):

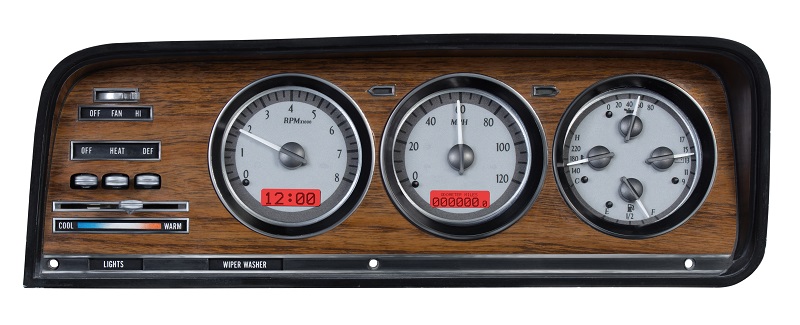

VHX-73J-WAG with SILVER ALLOY style and RED backlighting (bezel is NOT included):

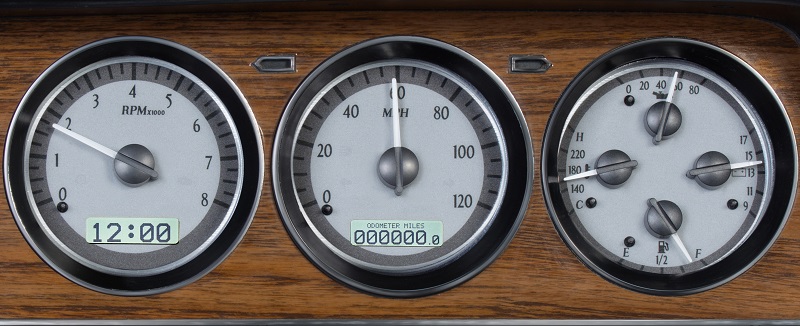

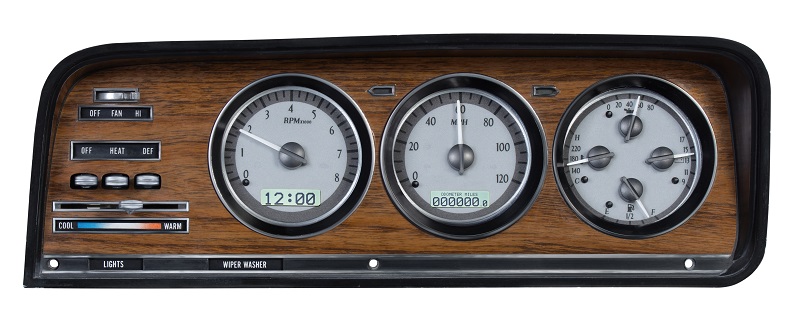

VHX-73J-WAG with SILVER ALLOY style and WHITE backlighting (bezel is NOT included):

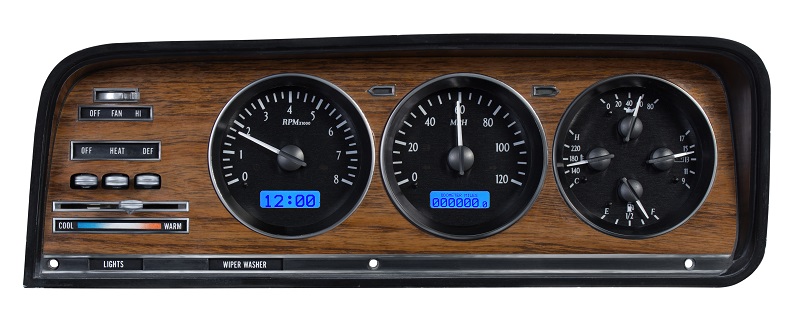

VHX-73J-WAG with BLACK ALLOY style and BLUE backlighting (bezel is NOT included):

At Night:

VHX-73J-WAG with BLACK ALLOY style and RED backlighting (bezel is NOT included):

At Night:

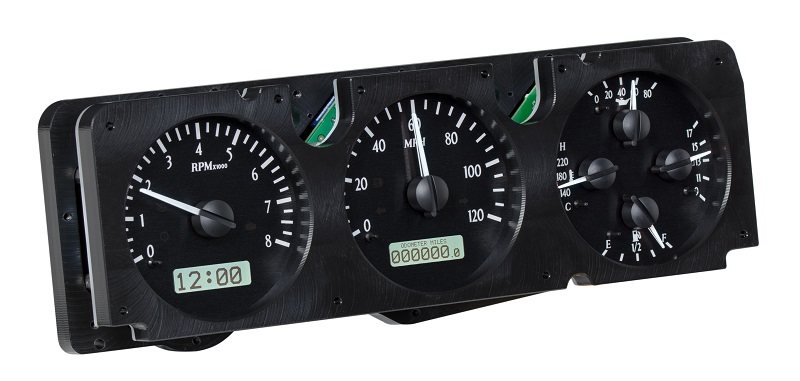

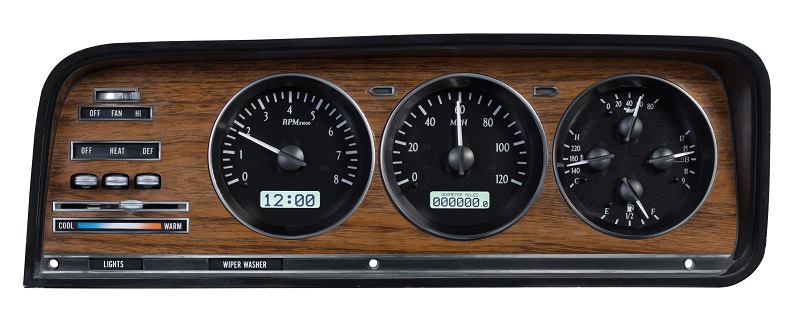

VHX-73J-WAG with BLACK ALLOY style and WHITE backlighting (bezel is NOT included):

Indicators On:

At Night:

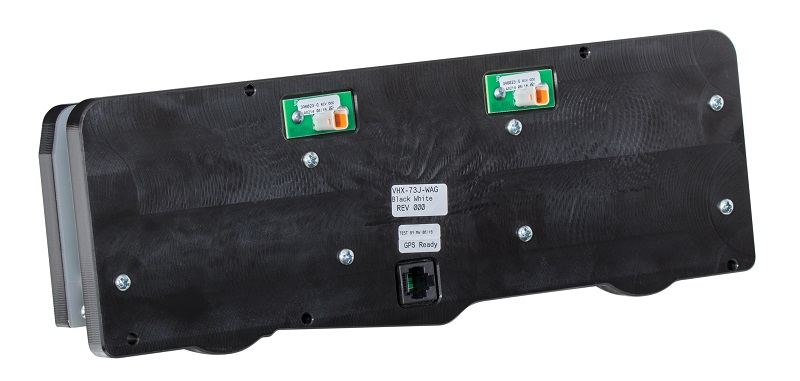

Back of Unit:




Limited Lifetime Warranty through manufacturer, see installation manual for details
