Dakota Digital 1968-70 Mopar B-Body: Coronet, Belvedere, Satellite and Road Runner Analog Gauge System VHX-68D-STD

Dakota Digital

MSRP: $1,095.00
$1,040.25
(You save $54.75 )
(2 reviews) Write a Review
SKU:
VHX-68D-STD-S-B
Condition:
New
Adding to cart… The item has been added

Dakota Digital 1968-70 Mopar B-Body: Coronet, Belvedere, Satellite and Road Runner VHX Instruments - VHX-68D-STD


Here’s a direct-fit VHX package for those 1968-70 Mopar B-bodies that didn’t get the Rallye dash. Installation is easy since this unit is a direct fit and utilizes your stock instrument surround and dash pad. Inside the system, a single large LCD message center allows the driver to see just what they need when they need it. Six analog-sweep instruments provide more information than dreamt of back in ’68, and all the important indicators are built in too!

*Bezel shown in any pic is NOT included, shown for illustrative purposes only. System uses OEM or reproduction style bezel.

This 6-gauge system includes a new, fully-machined rear gauge housing, attaching directly to the stock metal dash framework, then overlaid by the stock trim bezel.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Please scroll through the listing for more information and pictures of this system.



MHX-68D-STD Metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take approximately 8-16 weeks to build. Some systems may take a little longer due to COVID-19 and high demand affecting production.



VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.



BIM

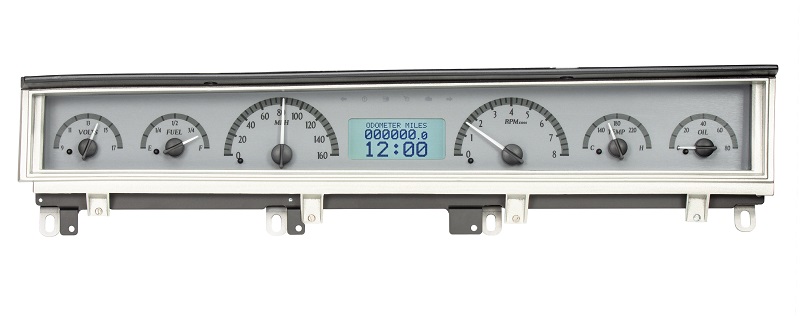

VHX-68D-STD with SILVER ALLOY style and BLUE display (bezel shown in pics is NOT included):

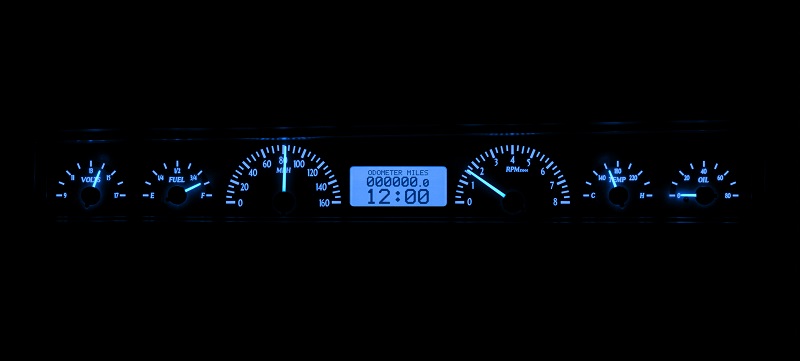

At Night:

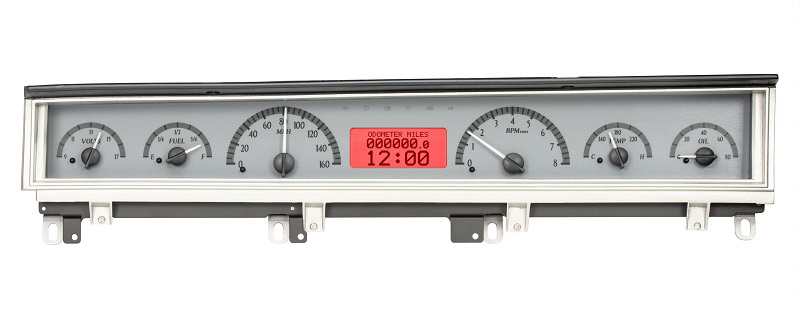

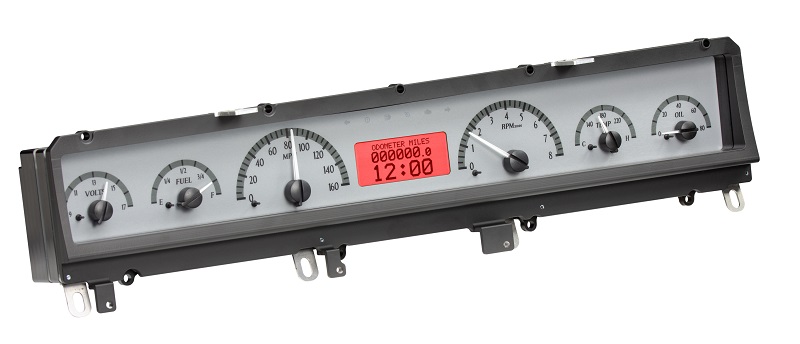

VHX-68D-STD with SILVER ALLOY style and RED display (bezel shown in pics is NOT included):

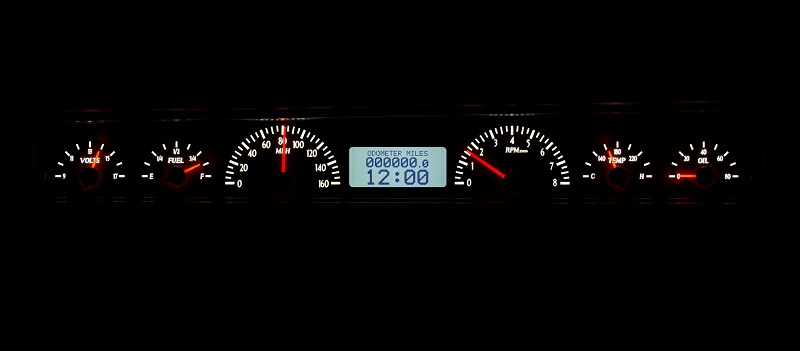

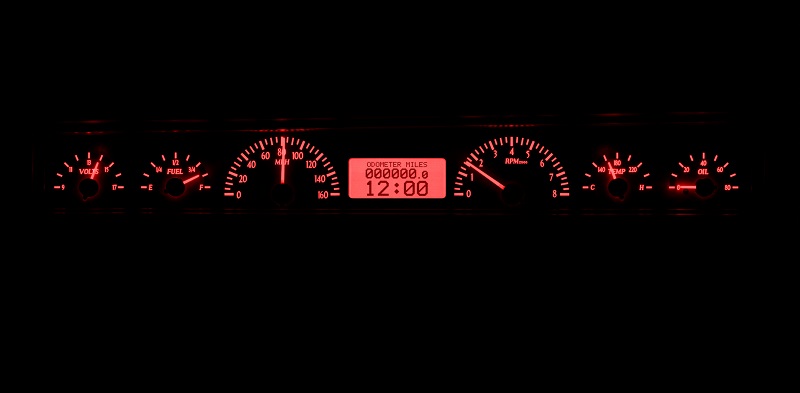

At Night:

VHX-68D-STD with SILVER ALLOY style and WHITE display (bezel shown in pics is NOT included):

At Night:

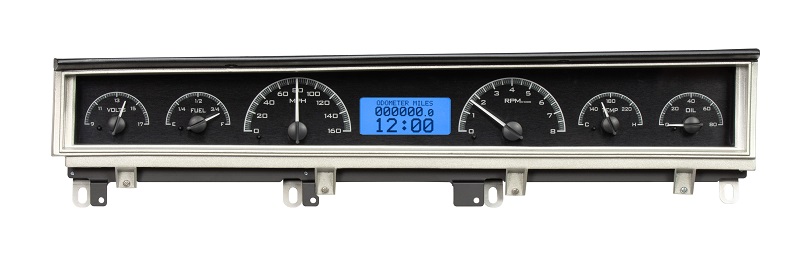

VHX-68D-STD with BLACK ALLOY style and BLUE display (bezel shown in pics is NOT included):

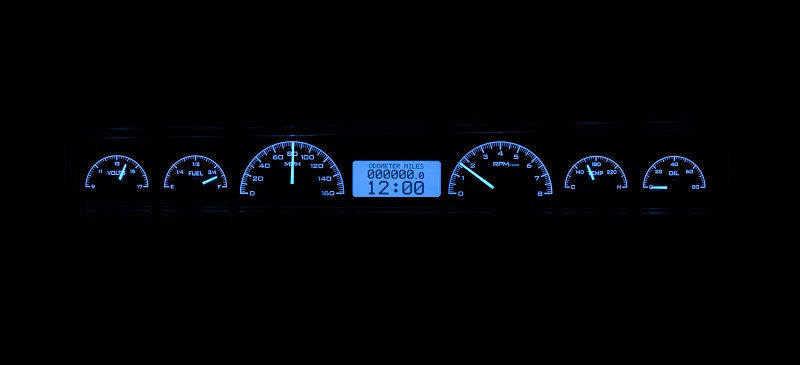

At Night:

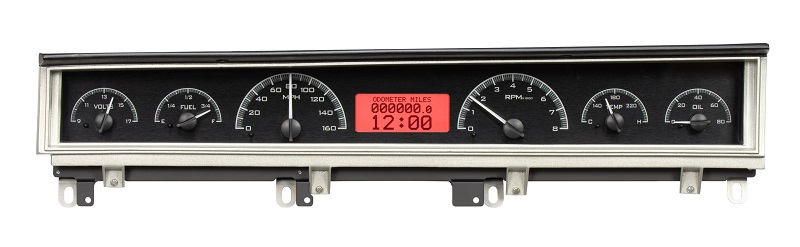

VHX-68D-STD with BLACK ALLOY style and RED display:

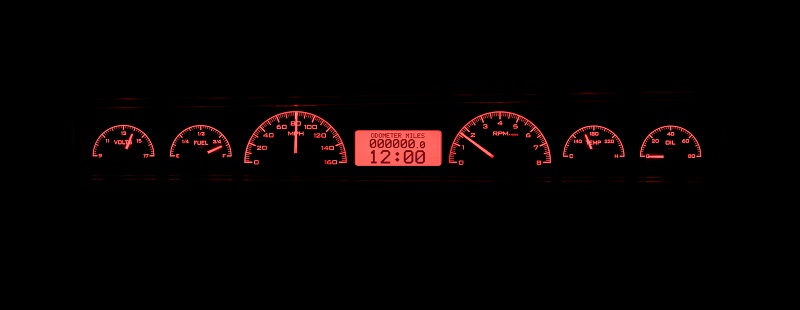

At Night:

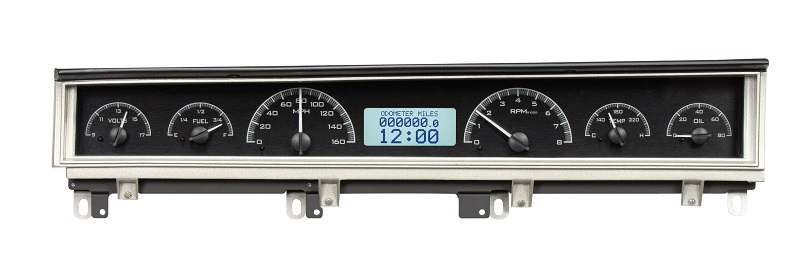

VHX-68D-STD with BLACK ALLOY style and WHITE display (bezel shown in pics is NOT included):

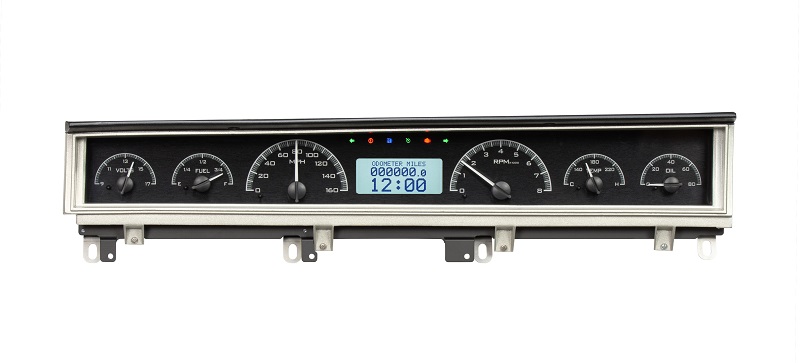

Indicators On:

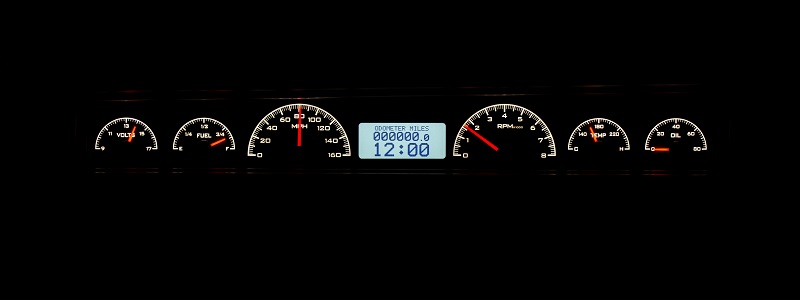

At Night:

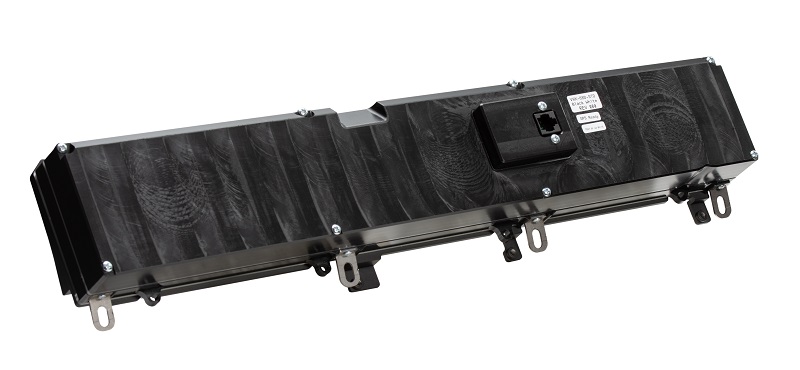

Back:



Limited Lifetime Warranty through manufacturer, see installation manual for details

2 Reviews Hide Reviews Show Reviews

  • 5
    Tech support on dash

    Posted by Gus Trapani on 7th May 2019

    I called about 3 time while i was installing my dash with gauges and every time I talked to someone , I was treated very professional and they stayed with me until i totally understood. I worked for Snap-on for 40 years and know the value of a customer. Your tech support team treated me like family and i cannot say enough good things about them.

  • 5
    Best

    Posted by Gus Trapani on 7th May 2019

    The dash fit[refectory and all of the hood up was easy if you followed the manuel
