Dakota Digital 1957 Chevy Car VHX Instruments - VHX-57C




Utilizing the stock instrument housing, this simple upgrade takes advantage of the recognizable triple gauge pod found in the 1957 Chevy Car (bezels shown in pics are NOT included, but can be purchased separately in our store, details below).

Arguably the pinnacle of the 1950's design, the 1957 Chevy dash is a favorite among builders. VHX-57C triples the amount of information available without modification. Stock indicators can be retained, or connected to VHX control box for full integration. Fits original gauge housing (not included) and can be used with factory or reproduction trim rings (not included, sold separately).

*Bezel and housing are NOT included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Please scroll through the listing for more information and pictures of this system.

MHX-57C Metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take approximately 8-16 weeks to build. Some systems may take a little longer due to COVID-19 and high demand affecting production.



VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.

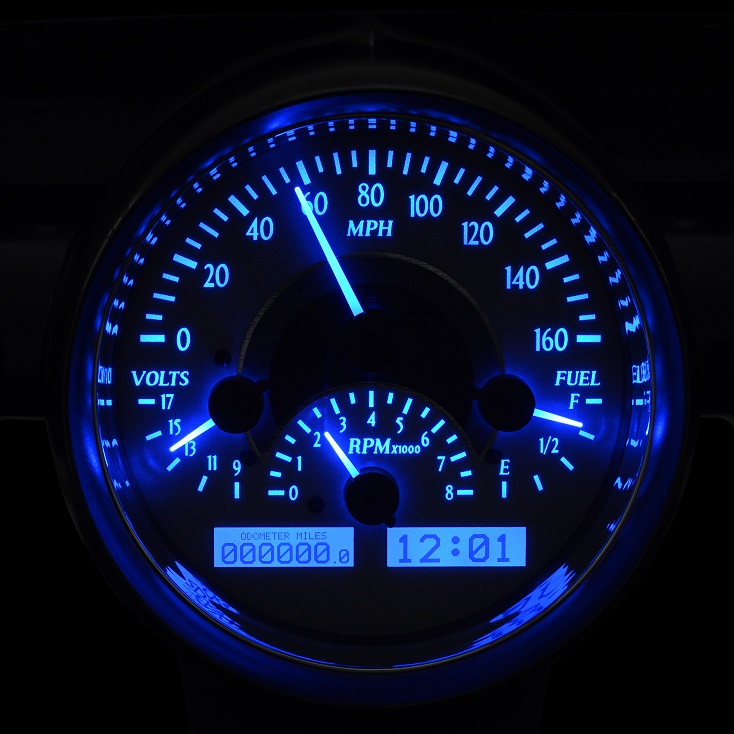

VHX-57C with SILVER ALLOY with BLUE DISPLAY (housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store):

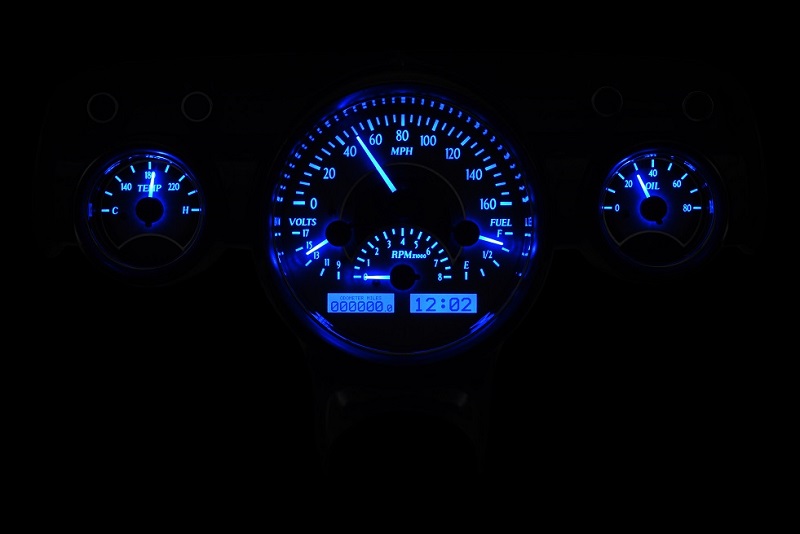

At Night:

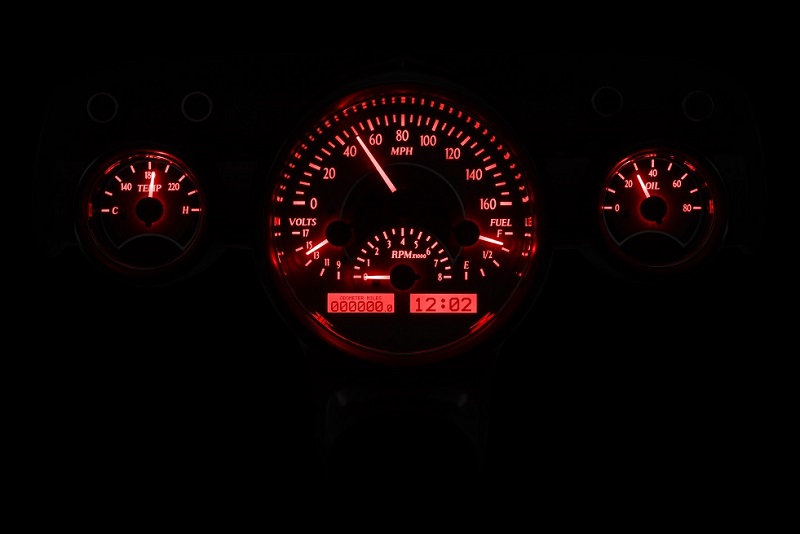

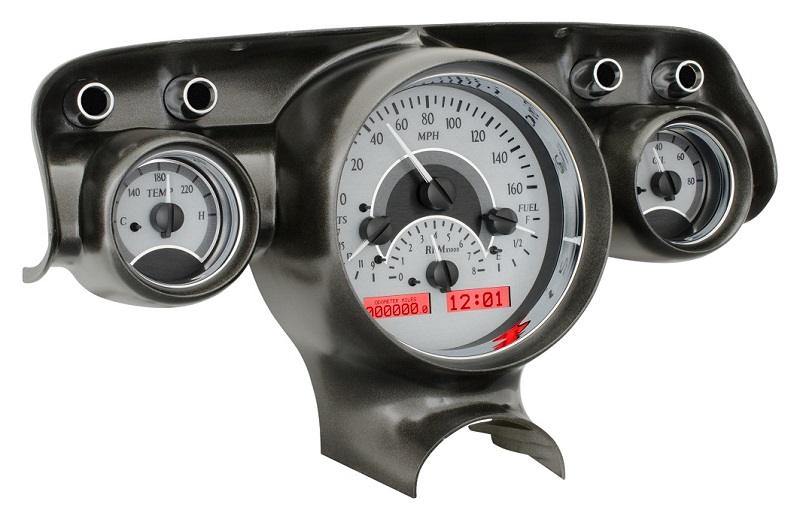

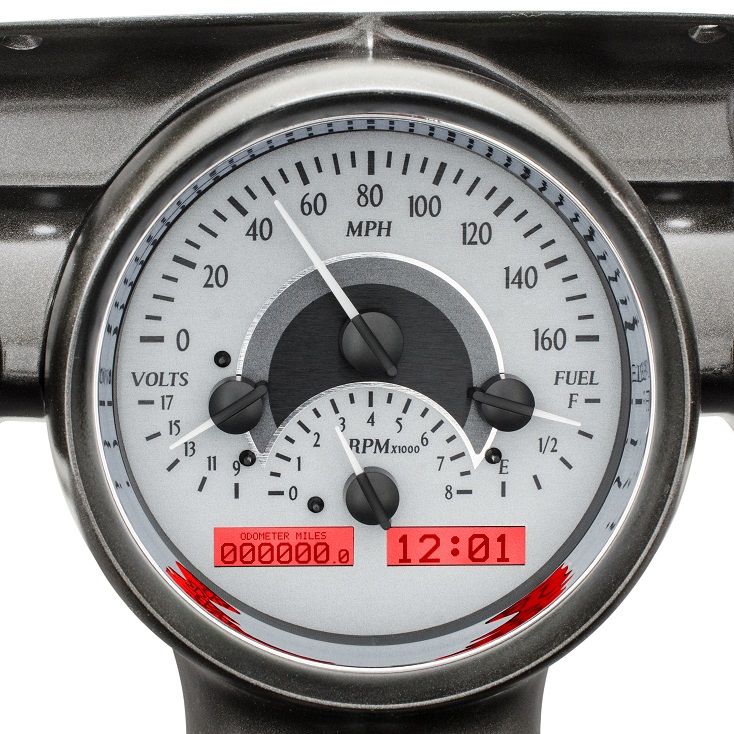

VHX-57C with SILVER ALLOY style and RED display (housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store):

At Night:

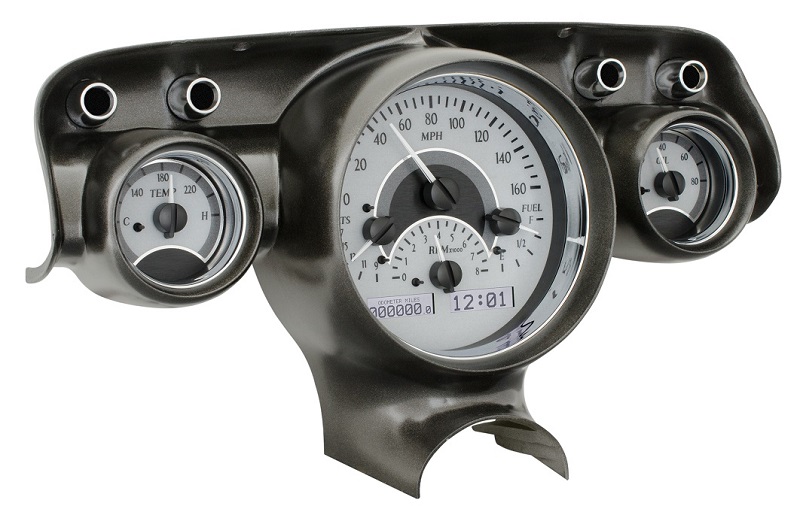

VHX-57C with SILVER ALLOY style and WHITE display (housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store):

At Night:

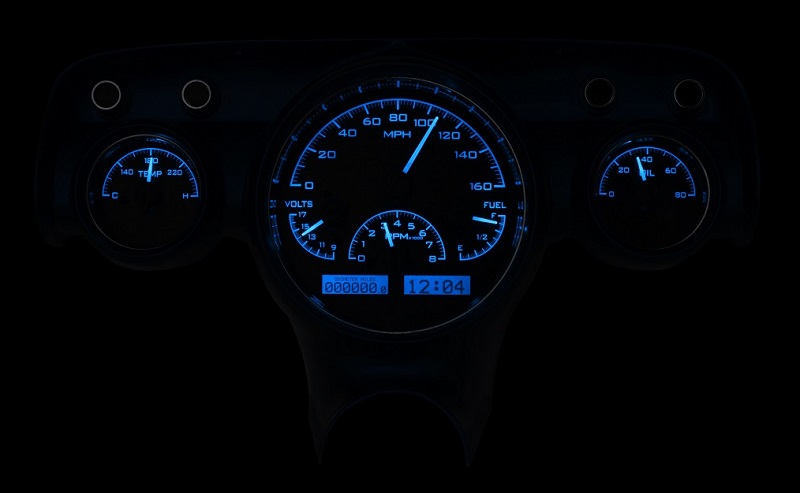

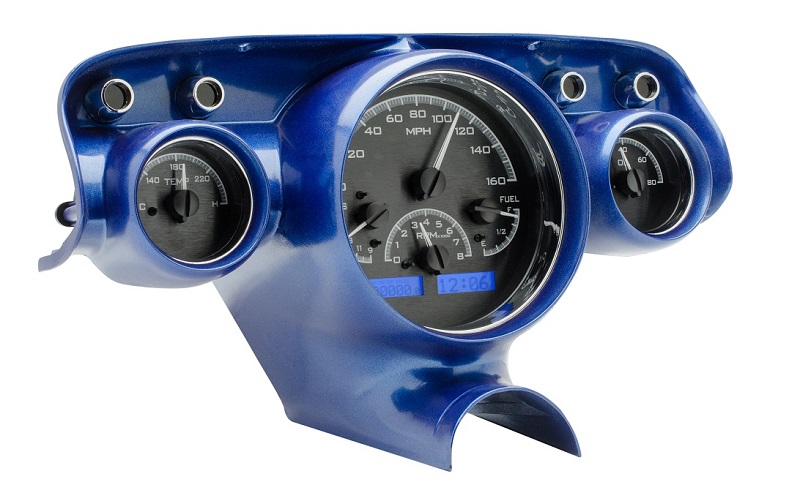

VHX-57C with BLACK ALLOY with BLUE DISPLAY (housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store):

At Night:

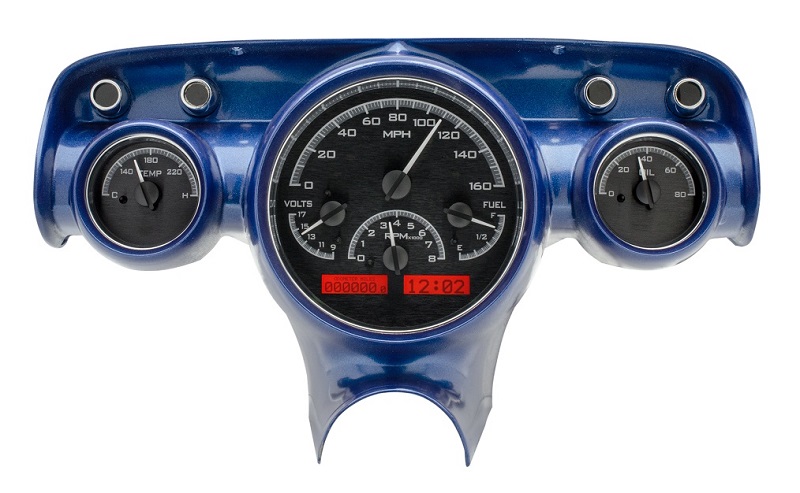

VHX-57C with BLACK ALLOY with RED DISPLAY(housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store) :

At Night:

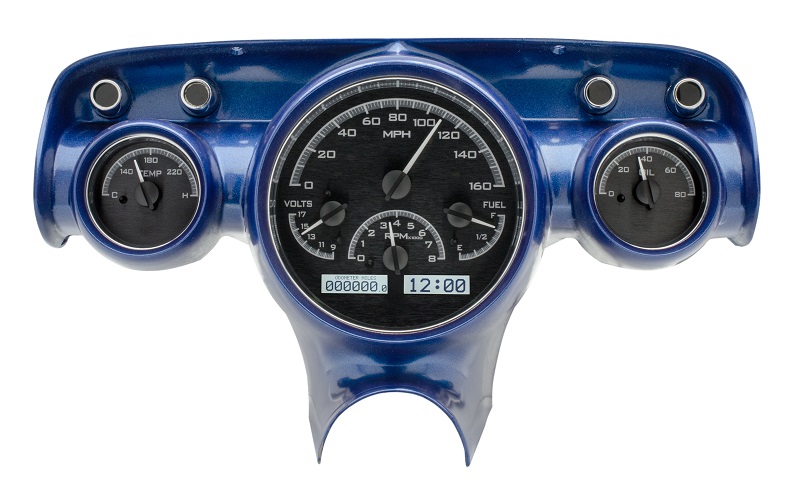

VHX-57C with BLACK ALLOY with WHITE DISPLAY(housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store) :

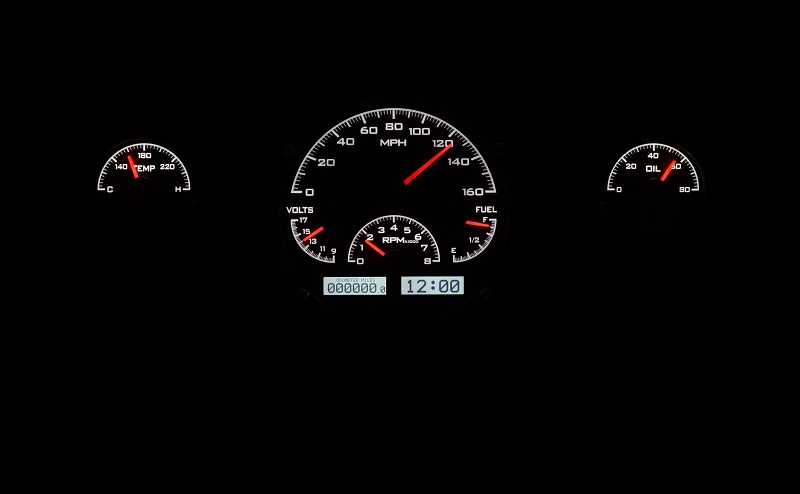

At Night:

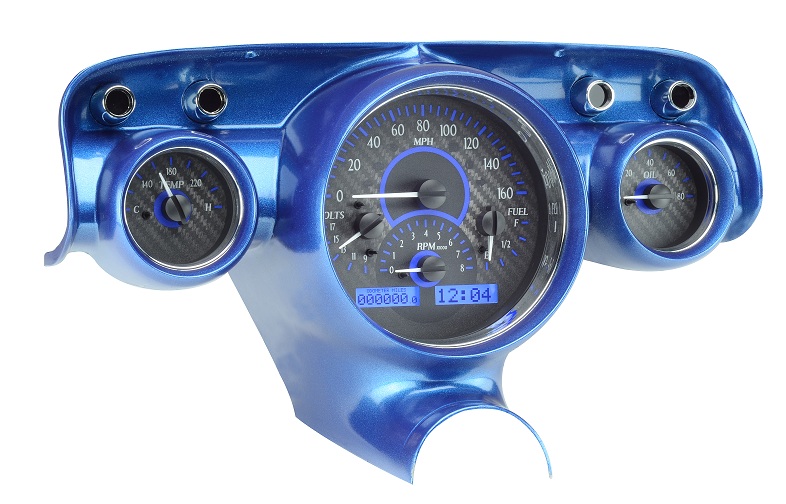

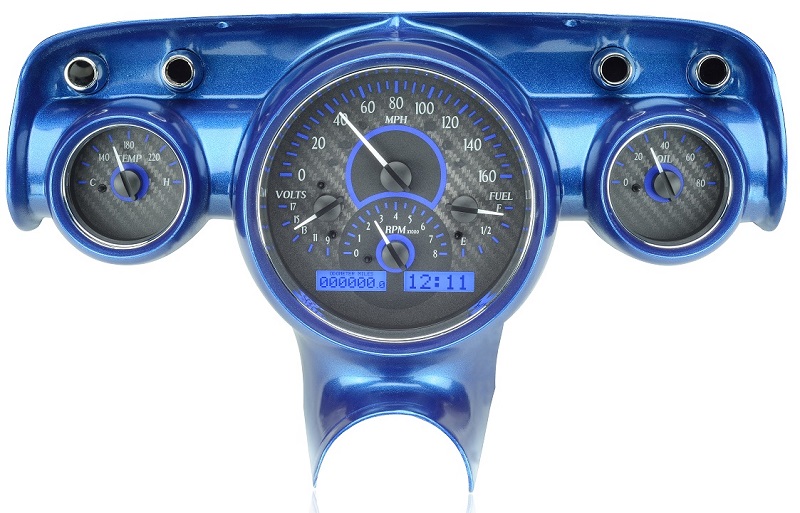

VHX-57C with CARBON FIBER style and BLUE display(housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store):

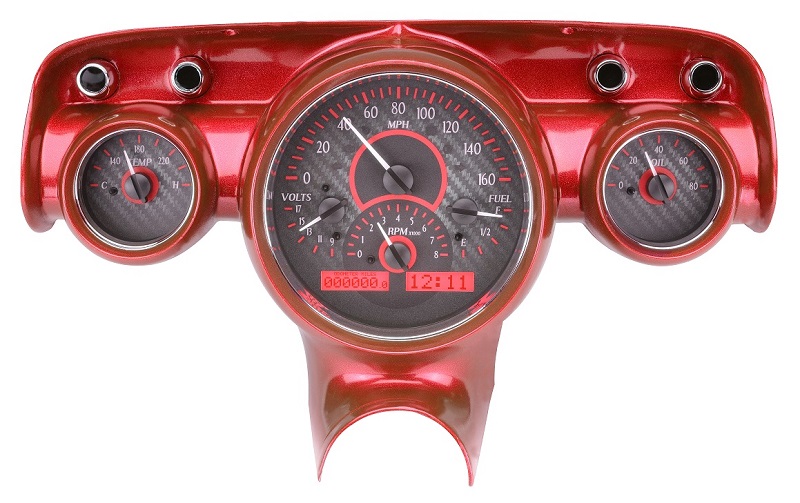

VHX-57C with CARBON FIBER style and RED display(housing and reproduction chrome bezels shown in pic are not included, but reproduction chrome bezels can be purchased separately in our store) :

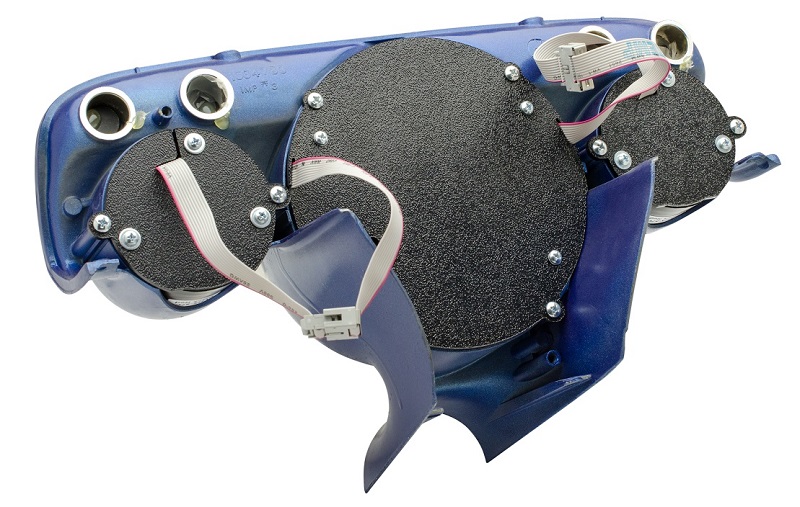

Back of Unit:




BZL-57C -1957 Chevy reproduction chrome bezels.



The reproduction chrome bezels shown in the above pictures are NOT included but can be purchased separately in our store.


Also available for purchase separately in our store:

VLC-57C - 1957 Chevy Car Analog Clock Gauge, sold separately (shown with SILVER ALLOY style).

VLC-57C-S Silver Alloy Clock Gauge


Also available for purchase separately:

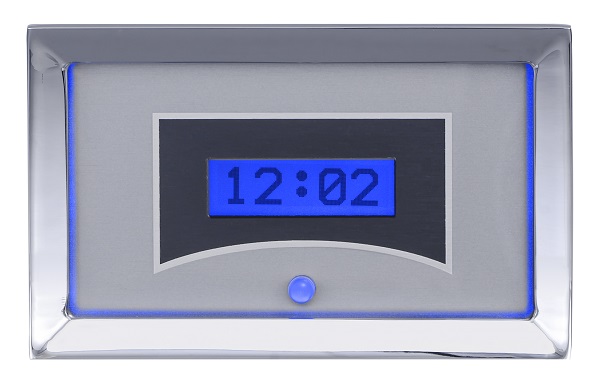

VLK-57C - 1957 Chevy Car Digital Clock (matches VHX Message Center), sold separately (shown with SILVER ALLOY and BLUE display):






Limited Lifetime Warranty through manufacturer, see installation manual for details
