Dakota Digital 1932 Ford Car Analog Dash Gauge Instrument System VHX-32F

MSRP: $845.00
$802.75
(You save $42.25 )
(No reviews yet) Write a Review
SKU:
VHX-32F-S-B
Condition:
New

Dakota Digital 1932 Ford Car VHX Instruments - VHX-32F



The new VHX Systems fit directly into the stock dash of a 1932 Ford Car without modification.

*Includes new chrome bezel shown

Brilliant chrome plating and superb machining surround state of the art electronics in the VHX-32F direct fit system for 1932 Fords. Packed with features yet contained in the stock dash opening, a fully optioned instrument system can be had without compromising irreplaceable vintage sheet metal.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Dimensions:
Overall:  12.135" W x 4.925" H
Cutout:   11.685" W x 4.525" H

VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDCLighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.




BIM

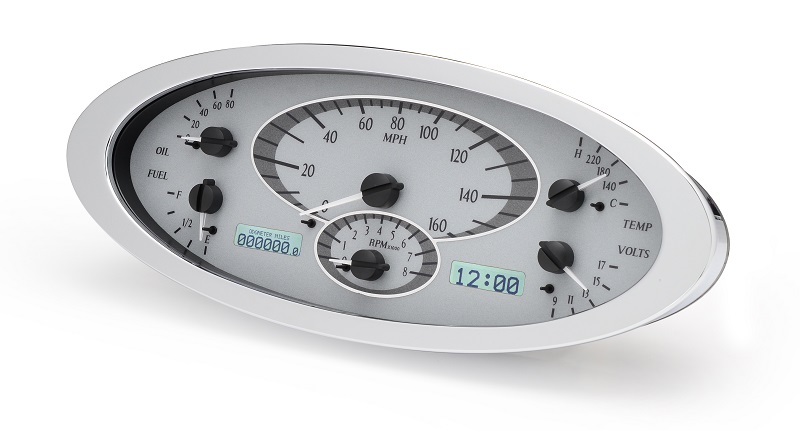

VHX-32F with SILVER ALLOY style and BLUE backlighting:

VHX-32F with SILVER ALLOY style and RED backlighting:

VHX-32F with SILVER ALLOY style and WHITE backlighting:

VHX-32F with BLACK ALLOY style and BLUE backlighting:

Blue Backlighting At Night:

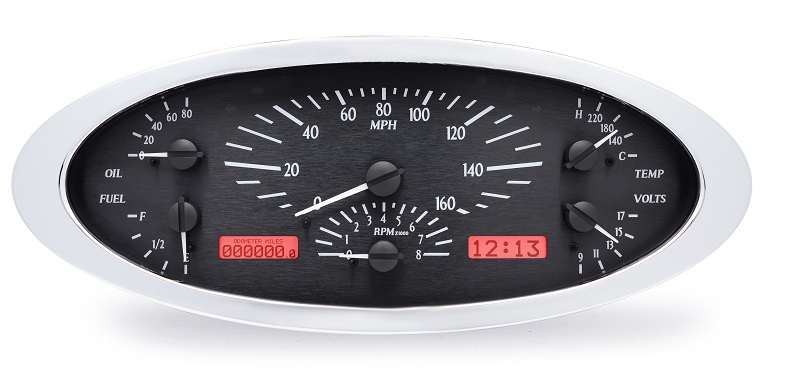

VHX-32F with BLACK ALLOY style and RED backlighting:

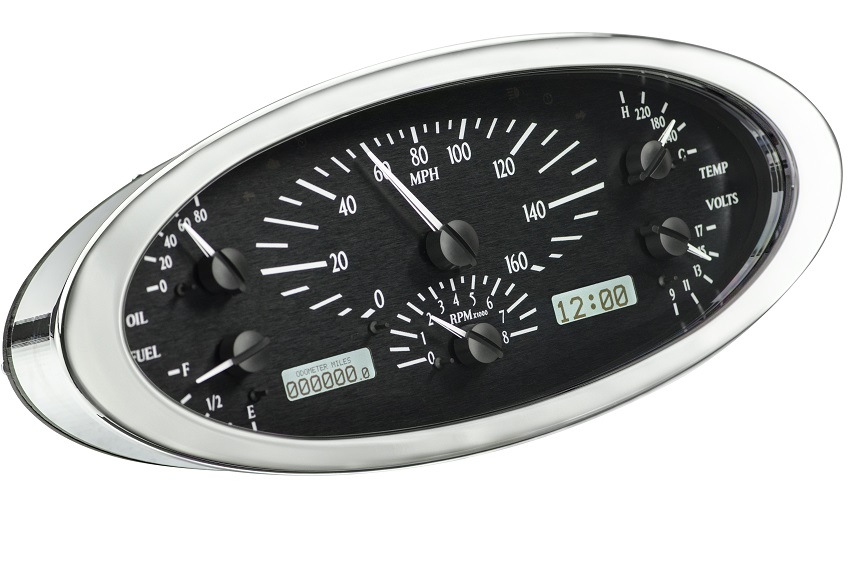

VHX-32F with BLACK ALLOY style and WHITE backlighting:

Indicators:

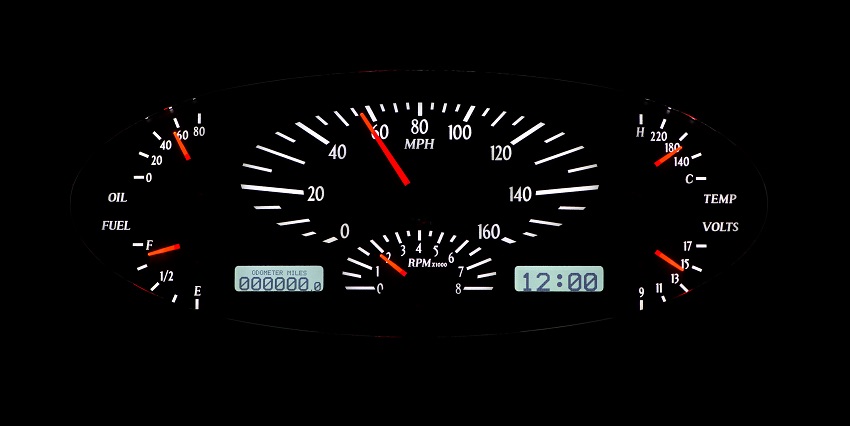

At Night:

Back of System:




Limited Lifetime Warranty through manufacturer, see installation manual for details
