Dakota Digital 1967 68 69 Marquez Design Camaro Analog Gauge System VHX-1200

$1,040.25
(No reviews yet) Write a Review
SKU:
VHX-1200-S-B
Condition:
New

Dakota Digital VHX Instrument System for Marquez Design Fiberglass Dash for 1967-69 Camaro - VHX-1200



The VHX-1200 is designed to fit the Marquez Design Fiberglass Dash for the 1967- 69 Camaro. Created as a crossover between the pure function of race gauges and the usability of street instrumentation, this system provides the best of both. With a 0-160 MPH Speedometer, a 0-10,000 RPM Tach and large-sweep Oil Pressure, Temperature, Volmeter and Fuel Level readouts, even the most radical of applications are covered. Four programmable, digital message centers allow for nearly unlimited expansion.

The billet aluminum faceplate is powdercoated flat-black and features intricate machining to create a unique multi-layered look. Measuring in at 16" x 7.25"H, this system is a direct-fit to the Marquez Designs dash, but also lends itself to custom applications (template included with kit).

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-10,000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.



Calibration



Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.



More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

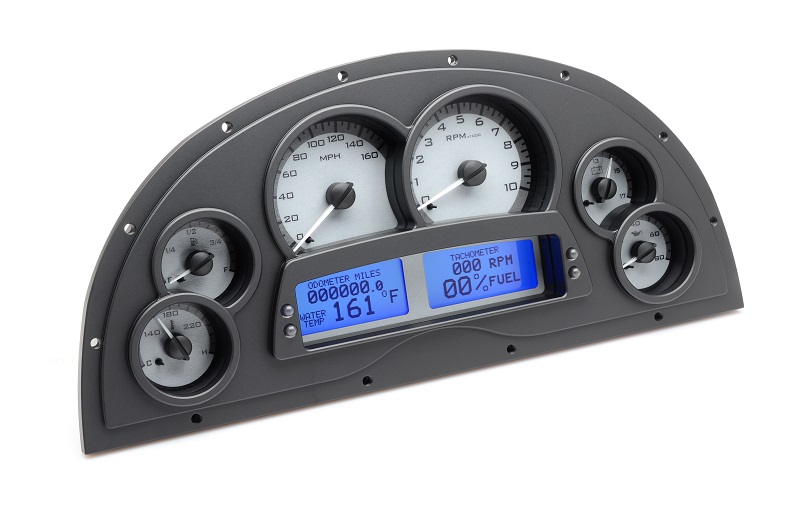

VHX-1200 with SILVER ALLOY style and BLUE display:

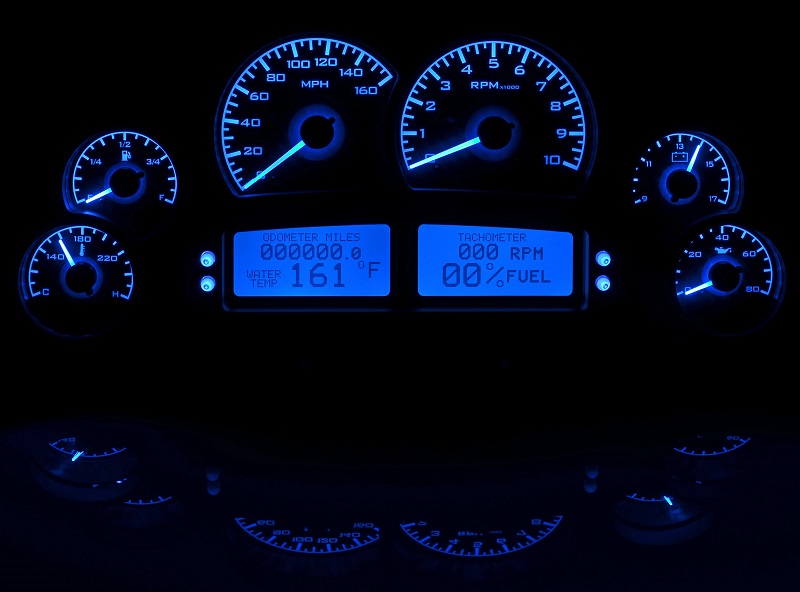

At Night:

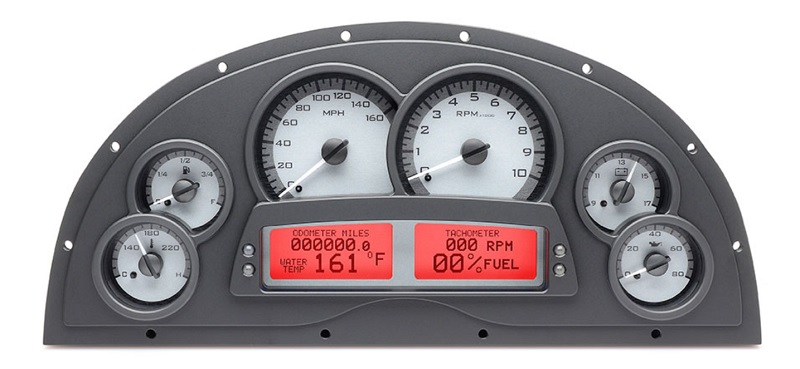

VHX-1200 with SILVER ALLOY style and RED display:

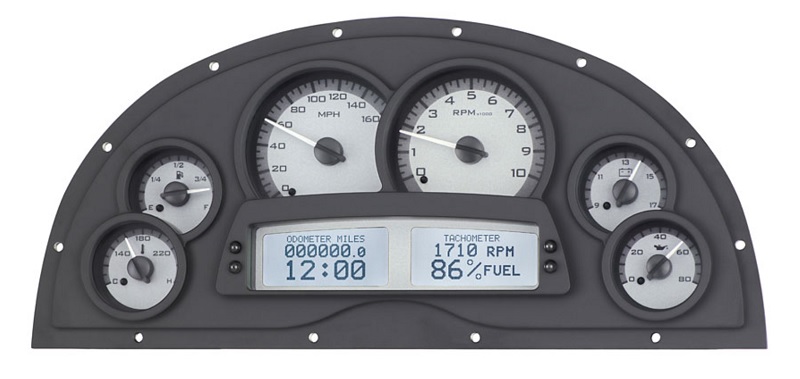

VHX-1200 with SILVER ALLOY style and WHITE display:

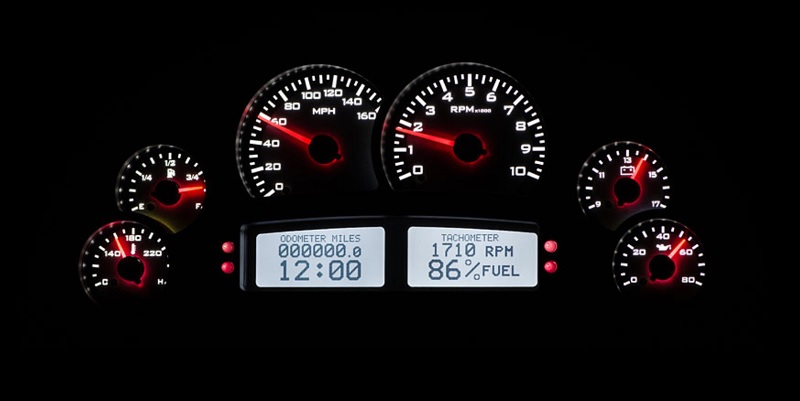

At Night:

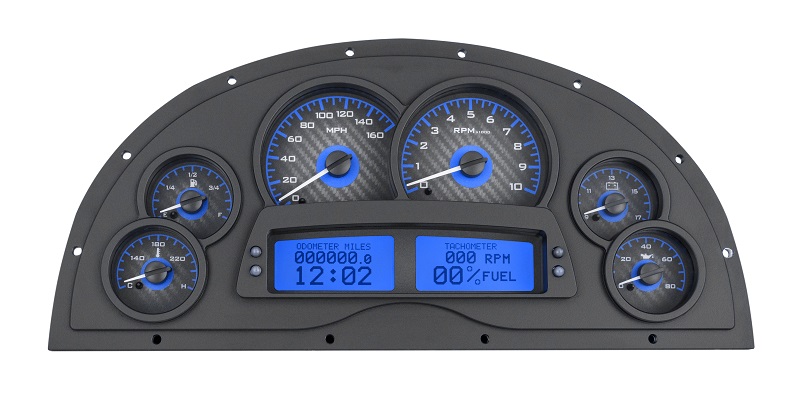

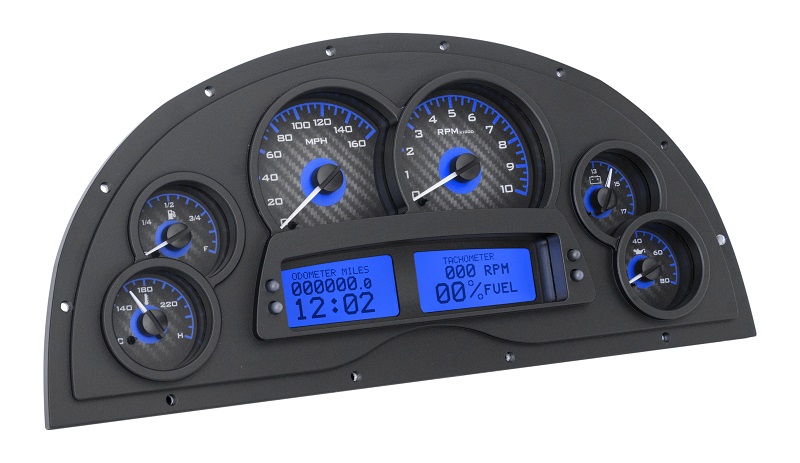

VHX-1200 with CARBON FIBER style and BLUE display:

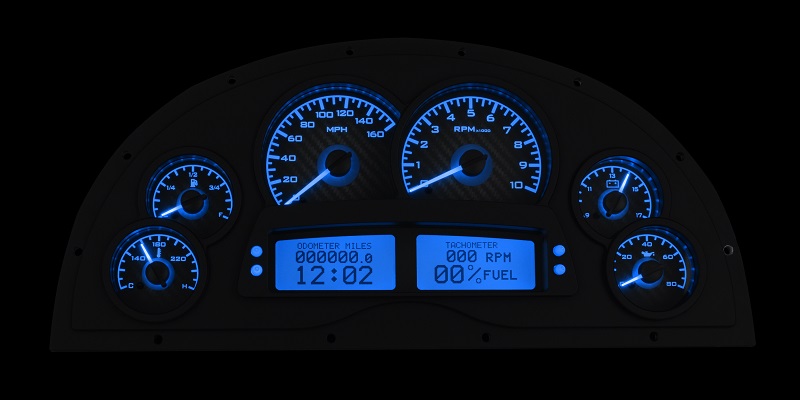

BLUE display at night:

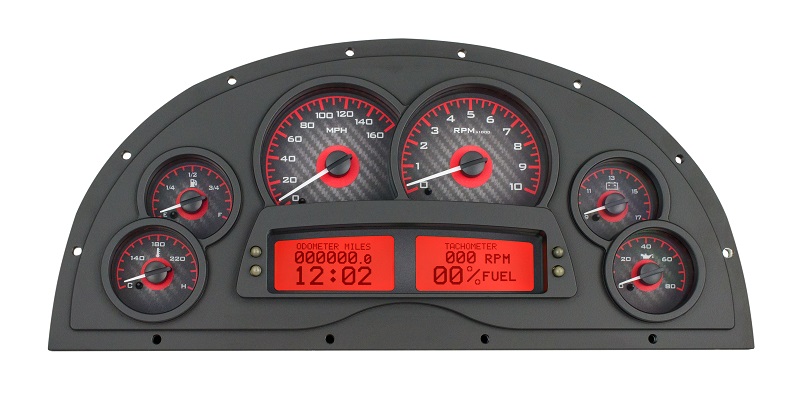

VHX-1200 with CARBON FIBER style and RED display:

At Night:

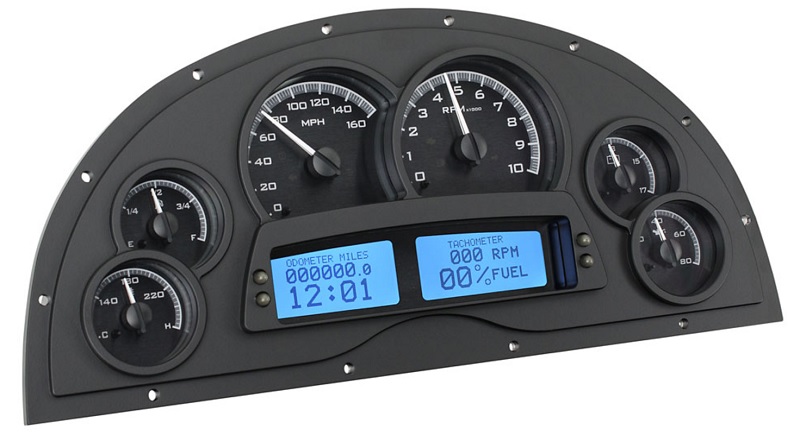

VHX-1200 with BLACK ALLOY style and BLUE display:

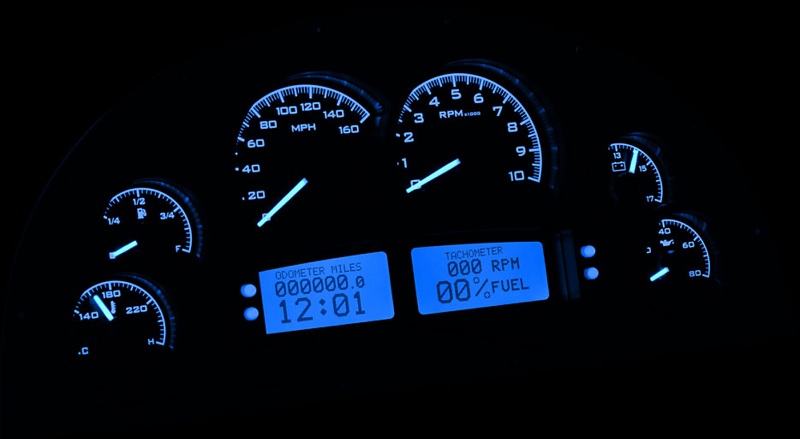

At Night:

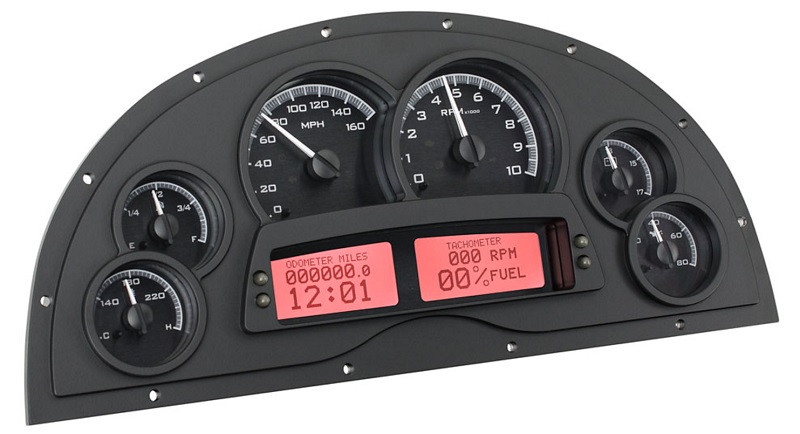

VHX-1200 with BLACK ALLOY style and RED display:

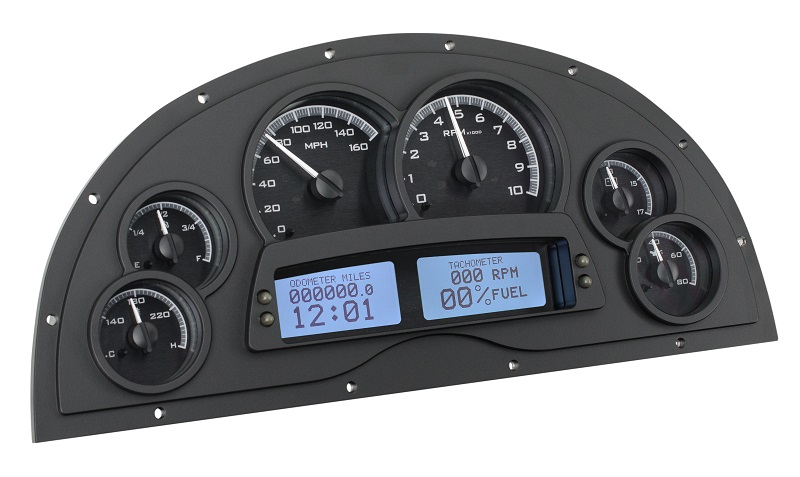

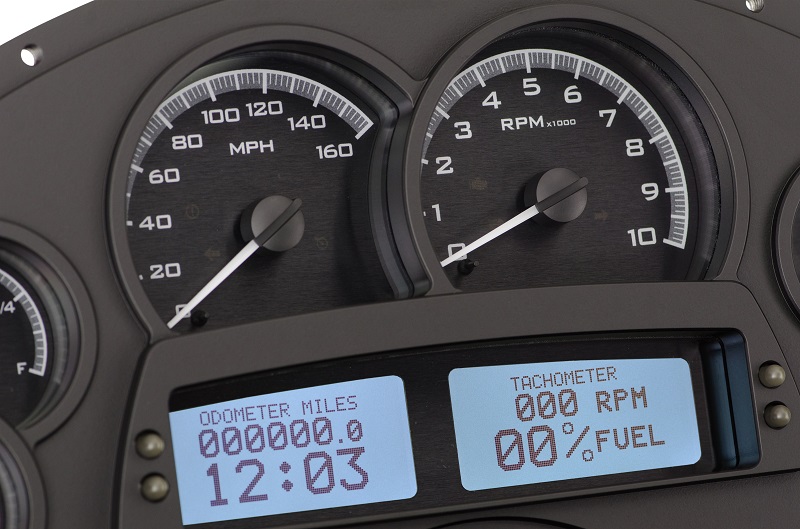

VHX-1200 with BLACK ALLOY style and WHITE display:

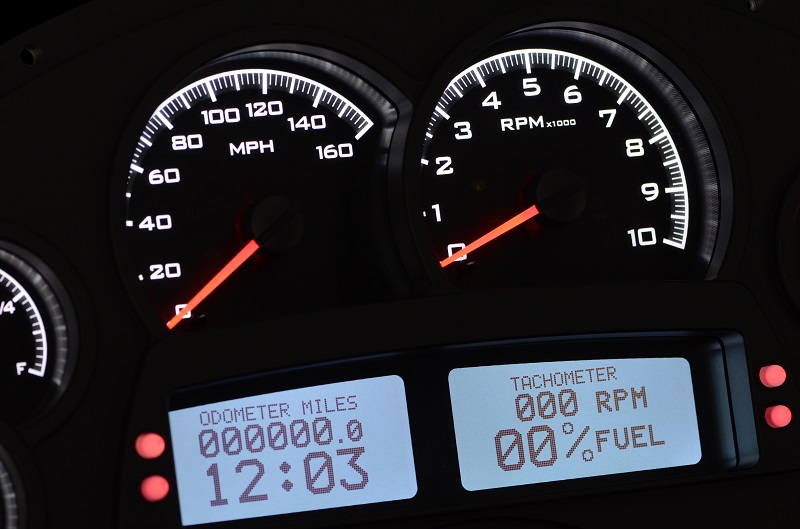

At Night:

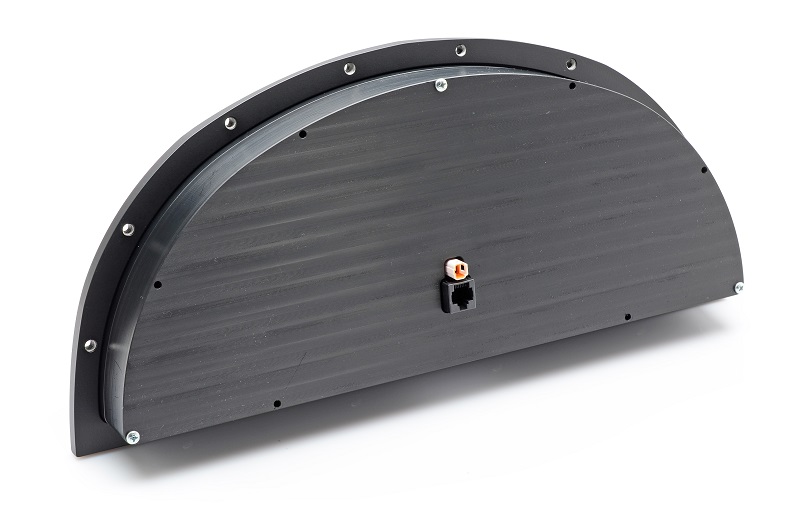

Back of Unit:






Limited Lifetime Warranty through manufacturer, see installation manual for details
