Dakota Digital Pressure Module - BIM-03-2

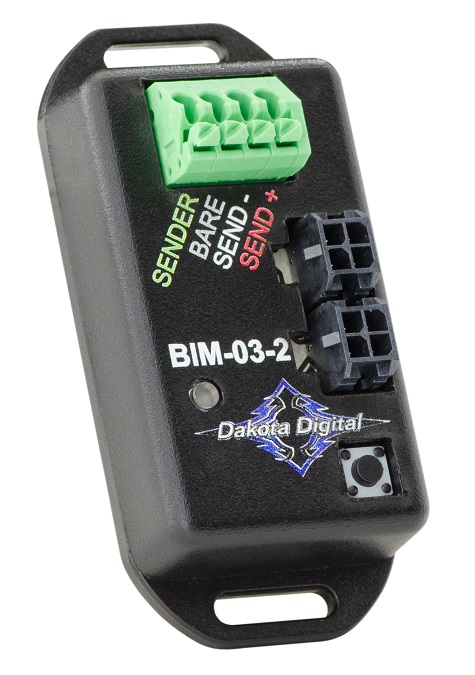

The BIM-03-2 is pressure module that allows you to display additional pressure readings within your VFD3 (rev G), VHX, HDX and RTX gauge systems. The BIM-03-2 utilizes Solid State Pressure senders to give you phenomenal accuracy (*see resolutions in the chart below), senders are sold separately.
Pressure Inputs:
- Pressure (generic fluid or air)
- Fuel Pressure
- Air Pressure
- Boost & Vacuum
- NOS Pressure
Input senders and specifications:
| Gauge Display | Sender Part # (sold separately) |
Range | Resolution | Low Warning | High Warning |
| PSI | SEN-03-9 | 0- 300psi | 1 | 0- 252 | 48- 300 |
| FUEL P | SEN-03-8 | 0- 100psi | 0.2 | 0- 63 | 9- 99 |
| AIR P | SEN-03-9 | 0- 300psi | 1 | 0- 252 | 48- 300 |
| BOOST | SEN-09-6 | 30inHg- 80psi | 1inHg/ 0.2psi | none | 7- 69 |
| NOS P | SEN-23-2 | 0- 2000psi | 10 | 600- 900 | 900- 1200 |
*The BIM-03-2 is designed to supply information to the VFD3 rev. G, VHX, HDX and RTX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
** BIM-03-2 Supersedes BIM-03-1
Senders sold separately (not included with BIM unit):
SEN-03-8 (0-100psi Fuel Pressure Sender)
SEN-03-9 (0-300psi Pressure Sender)
SEN-09-6 (30Hg/ 80 PSI Vacuum/ Boost Sender)
SEN-23-2 (0-2000psi NOS Pressure Sender)
1 Review Hide Reviews Show Reviews
-
Boost/Vacuum module BIM-03-2
Works great with my HDX guages and the boost/vacuum sensor. I'm only using it for vacuum so it would be nice to be able to label it as such in the HDX display. Unfortunately, the closest option is for "Boost". This is just a little frustrating since the combo of BIM & sensor is expensive.
