1995-98 Full-size Chevy / GMC Pickup Truck / 1995-00 SUV & HD Pickup VHX Instruments1995 1996 1997 1998 1999 2000
from Dakota DigitalVHX-95C-PU
For 1995-98 Full-size Chevy / GMC Pickup and 1995-00 SUV & HD models
A six-gauge, direct bolt-in replacement for 1995-98 GM pickups and ’95-00 SUV and HD models, complete with dedicated solid state sending units. This kit requires hardwiring into the stock harness; it is not a direct plug-in. Update the look of your OBS dash while adding compatibility to whatever engine and transmission you are running.
System replaces the entire factory instrument cluster and lens assembly, fully remade with a billet aluminum housing and optical grade polycarbonate lenses.

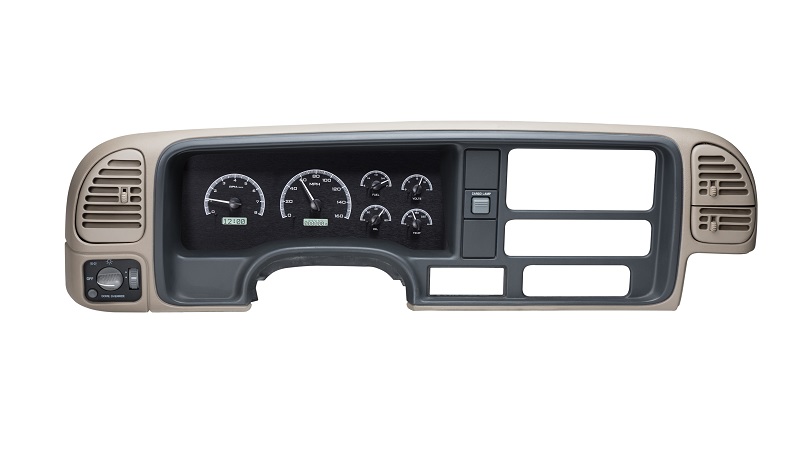

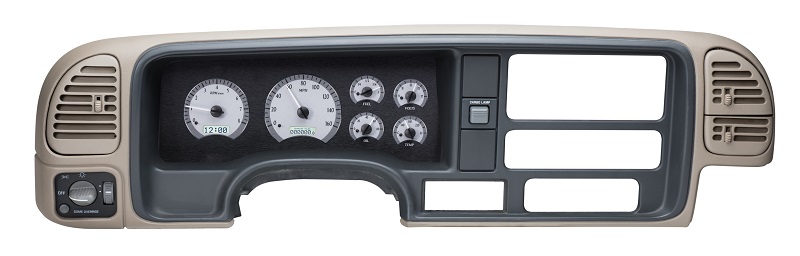

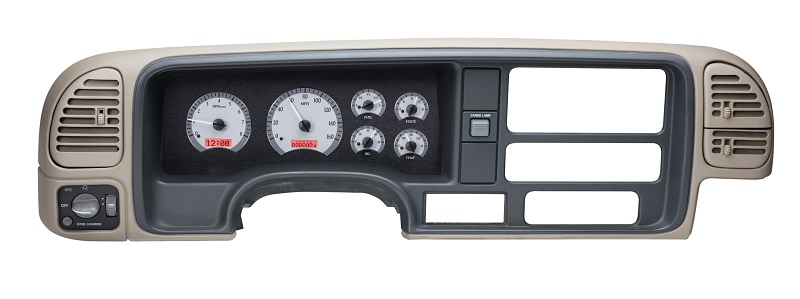

* Shown in OEM bezel/ trim/ fascia for demonstration purposes only (bezel/trim/fascia are not included).
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
*The VHX-95C-PU fits into a stock dash bezel (not included).
VHX System Includes:
Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Center
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall
Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.
Turn Signals (Left/ Right)
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.
Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).
Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.
Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

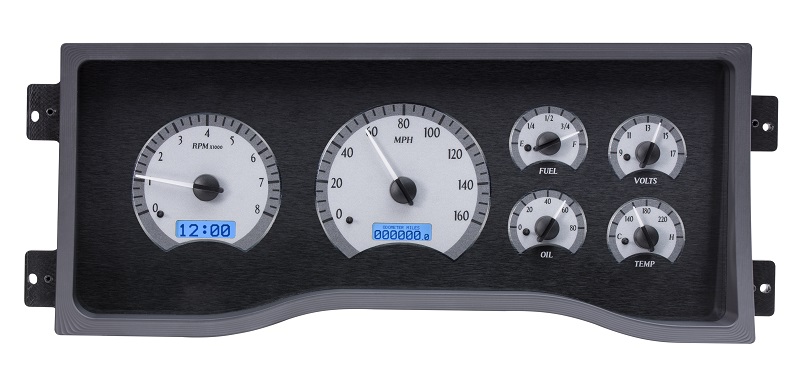

VHX-95C-PU with SILVER ALLOY style and BLUE display (bezel is not included):

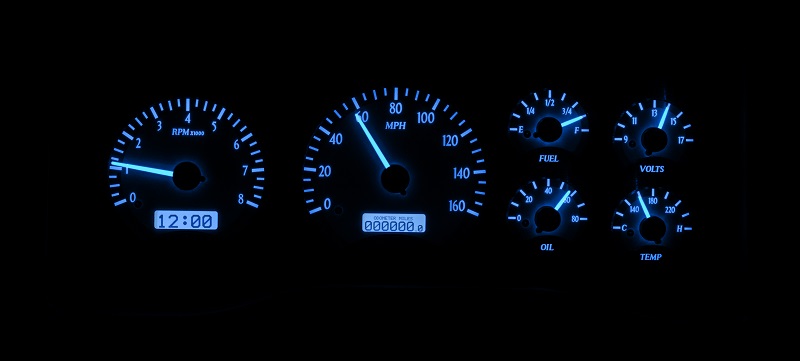

BLUE display at NIGHT:

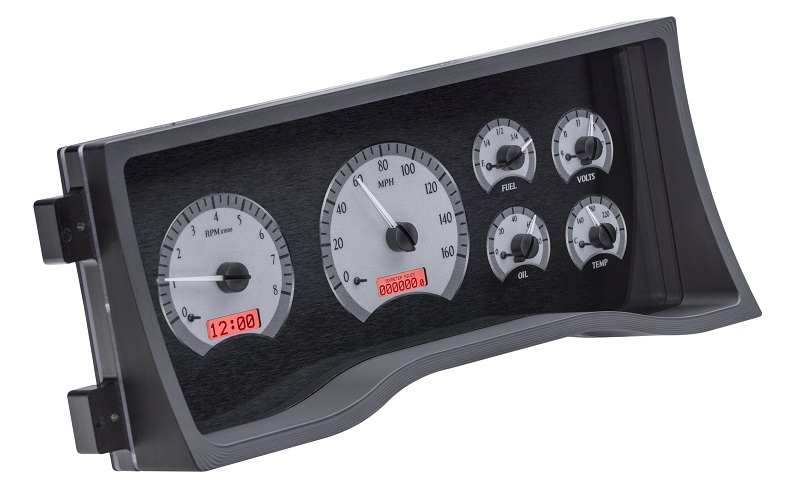

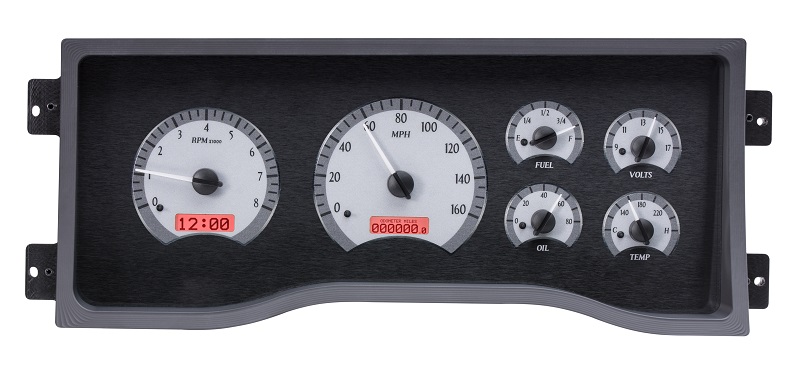

VHX-95C-PU with SILVER ALLOY style and RED display (bezel is not included):

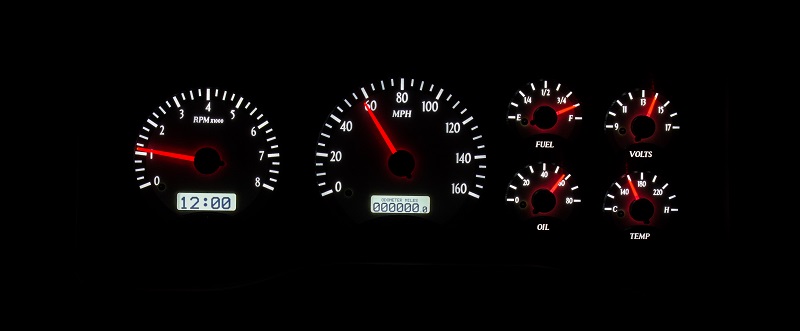

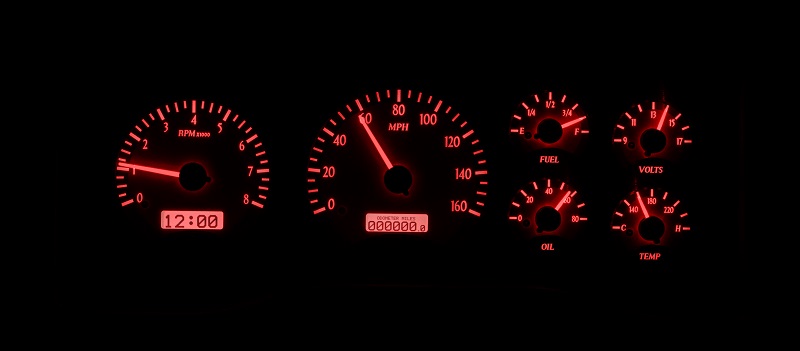

RED display at NIGHT:

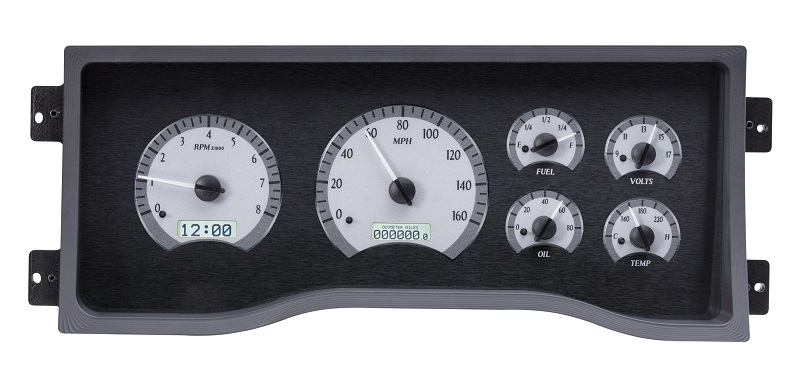

VHX-95C-PU with SILVER ALLOY style and WHITE display (bezel is not included):
WHITE display at NIGHT:

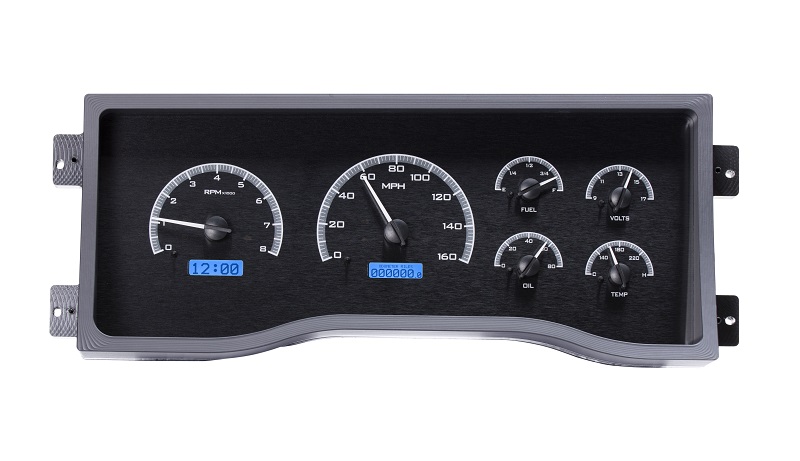

VHX-95C-PU with BLACK ALLOY style and BLUE display (bezel is NOT included):
VHX-95C-PU with BLACK ALLOY style and RED display (bezel is NOT included):

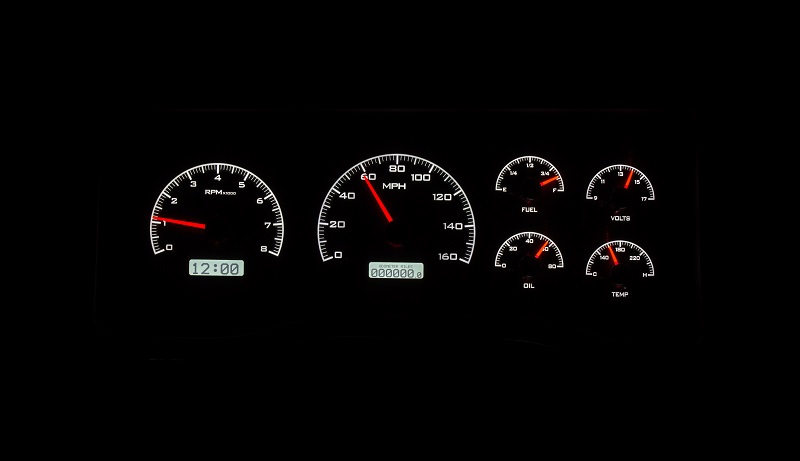

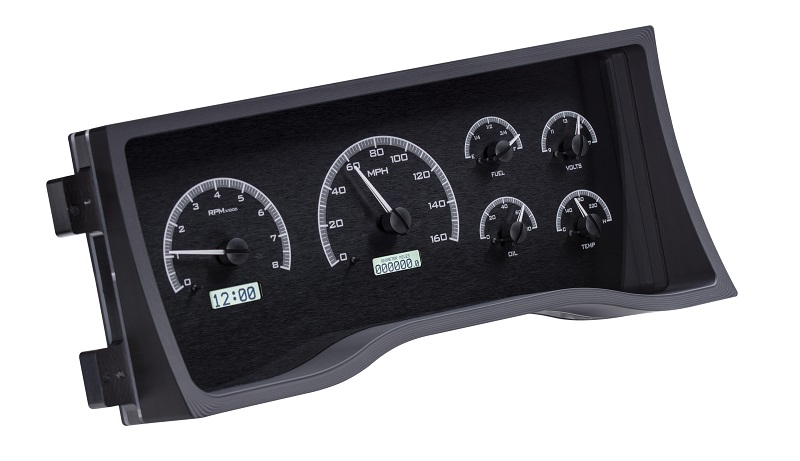

VHX-95C-PU with BLACK ALLOY style and WHITE display (bezel is NOT included):

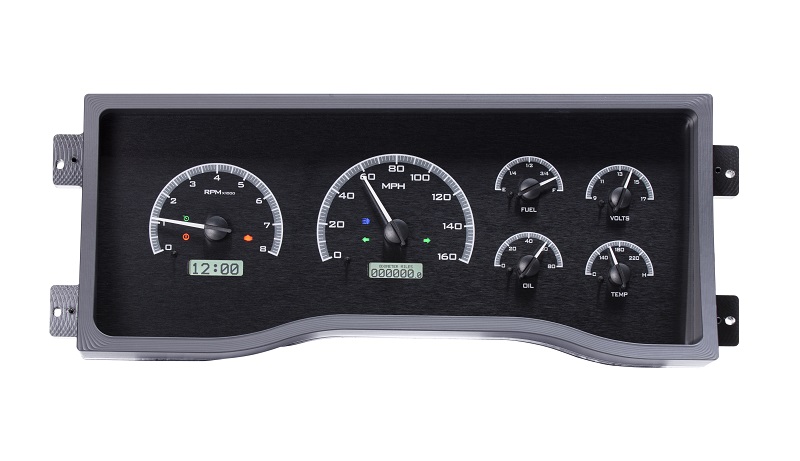

With Indicators On:

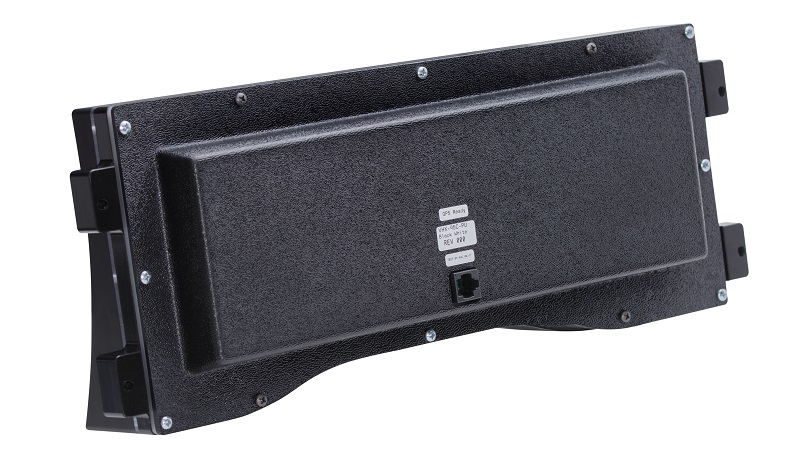

BACK OF UNIT:
