Dakota Digital 1966-67 Ford Fairlane Car Analog Gauge System VHX-66F-FAR

Dakota Digital

MSRP: $945.00
$897.75
(You save $47.25 )
(No reviews yet) Write a Review
SKU:
VHX-66F-FAR-S-B
Condition:
New
Adding to cart… The item has been added

Dakota Digital 1966-67 Ford Fairlane VHX Instruments - VHX-66F-FAR



The new VHX System fits directly into the stock instrument housing of a 1966-67 Ford Fairlane adding a wealth of features to this iconic vehicle.

Plates included which allow use of stock radio, a block-off plate, or a DIN radio (by opening up one of the included aluminum plates).

This 6-gauge system includes a new, fully-machined rear gauge housing, attaching directly to the stock dash.

Since the stock clear lens is removed (which integrates through the stock radio), a pair of plates is included to block off this space, add an OEM radio, or cut the blank for simple installation of a DIN radio.

* Bezel is NOT included, fits into stock bezel, bezel shown in any pic is for illustrative purposes only

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

MHX-66F-FAR Metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take approximately 8-16 weeks to build. Some systems may take a little longer due to COVID-19 and high demand affecting production.



VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F

Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces Ford and/ or GM style speedometer cables with a 10 ft harness.

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.



BIM

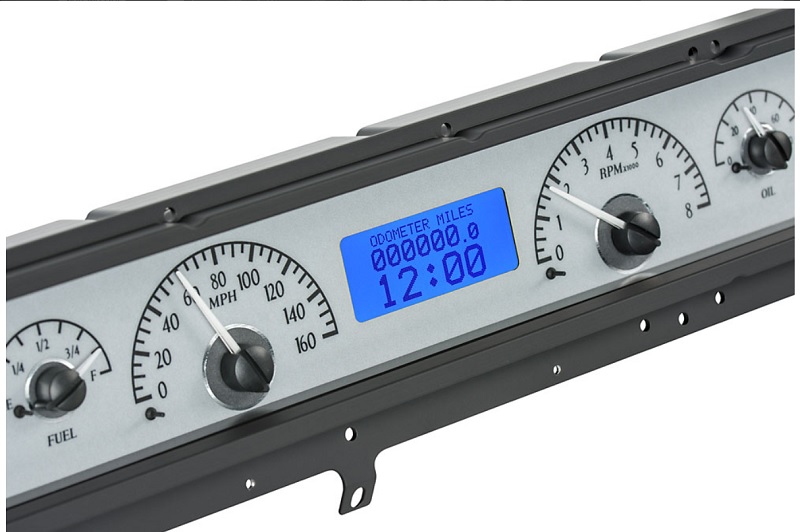

VHX-66F-FAR with SILVER ALLOY style and BLUE backlighting:

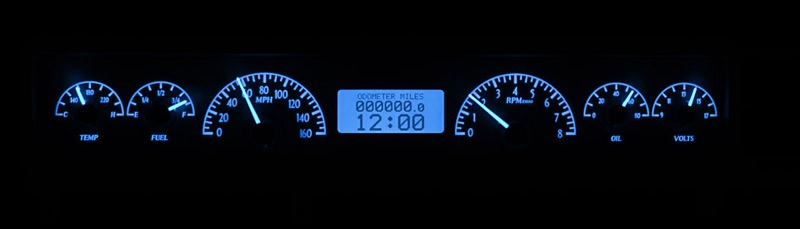

At Night:

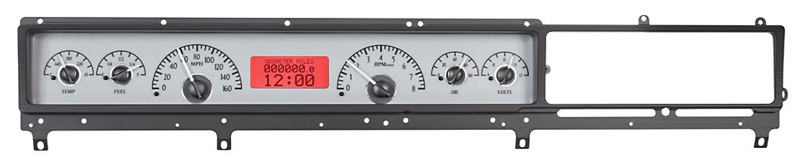

VHX-66F-FAR with SILVER ALLOY style and RED backlighting:

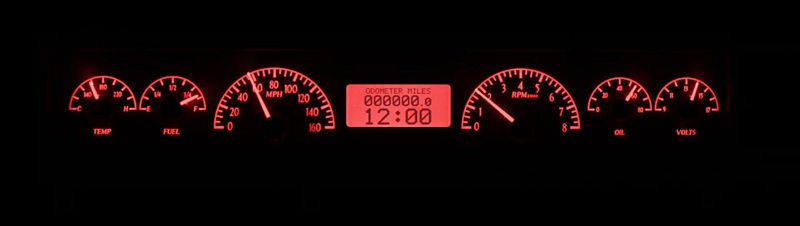

At Night:

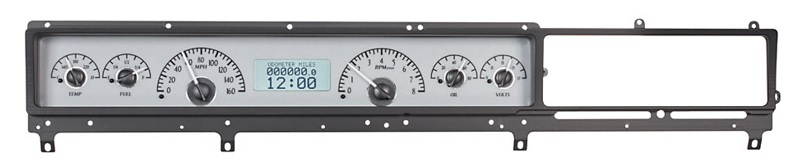

VHX-66F-FAR with SILVER ALLOY style and WHITE backlighting:

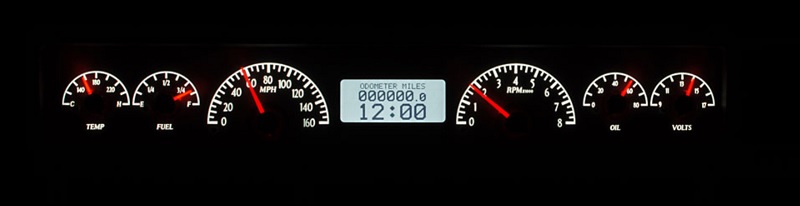

At Night:

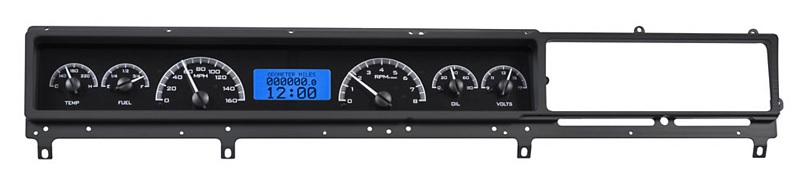

VHX-66F-FAR with BLACK ALLOY style and BLUE backlighting:

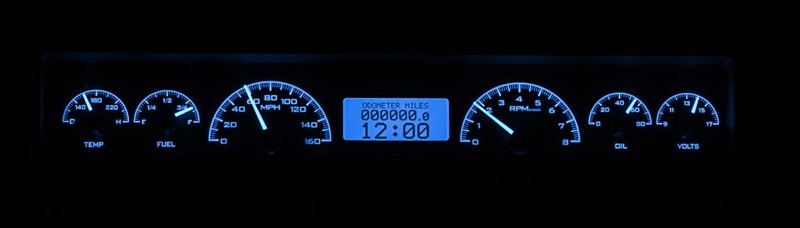

Blue Backlighting At Night:

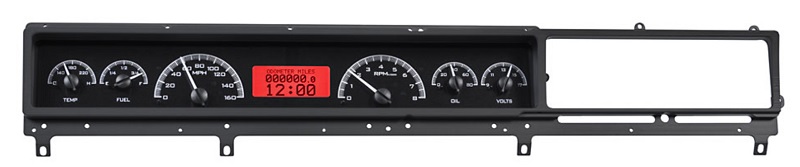

VHX-66F-FAR with BLACK ALLOY style and RED backlighting:

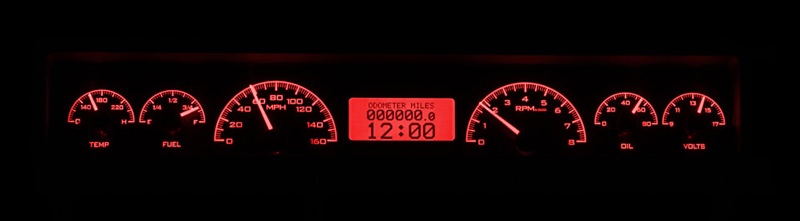

At Night:

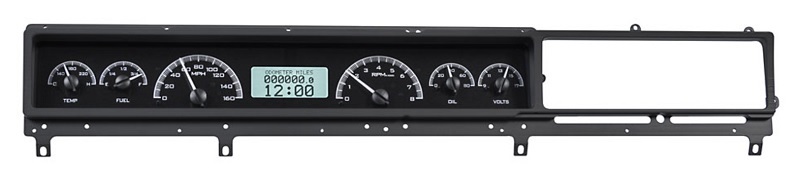

VHX-66F-FAR with BLACK ALLOY style and WHITE backlighting:

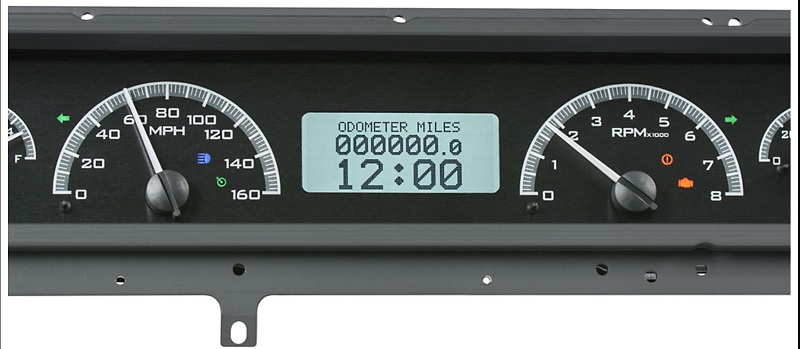

Indicators:

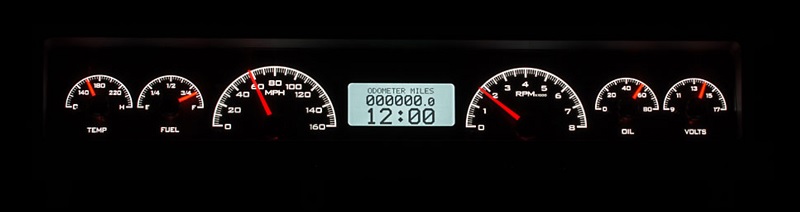

At Night:

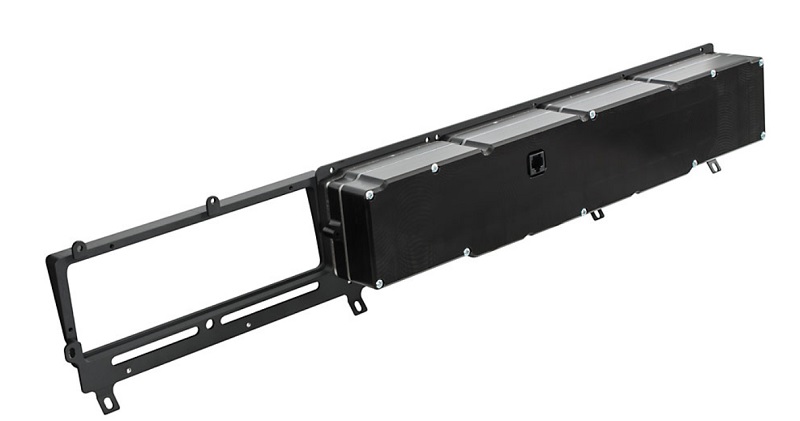

Back of System:




Limited Lifetime Warranty through manufacturer, see installation manual for details
