Dakota Digital Dash Universal 6 Gauge Cluster Elliptical Multi-Level System VFD3-1009

MSRP: $825.00
$783.75
(You save $41.25 )
(No reviews yet) Write a Review
SKU:
VFD3-1009
Condition:
New

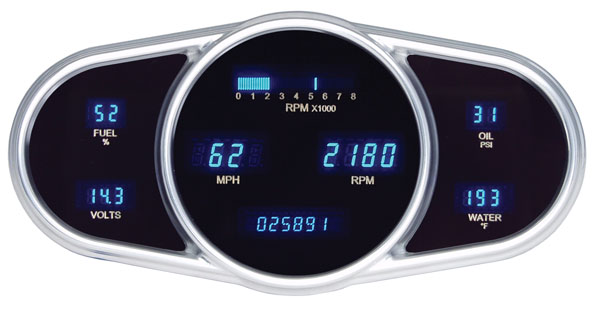

6 Gauge Universal Elliptical Designer Series Digital Instrument Panel

from Dakota Digital

VFD3-1009




Description from Dakota Digital:

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

Now with a new multi-tiered display gives you a unprecedented 3-D look never used before.

Show Quality Triple Chrome Plated Bezel.

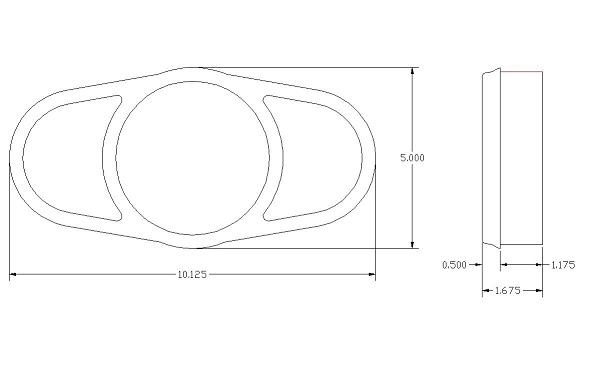

Unit Dimensions:
10-1/8"wide, 5" tall, 1-1/2" deep

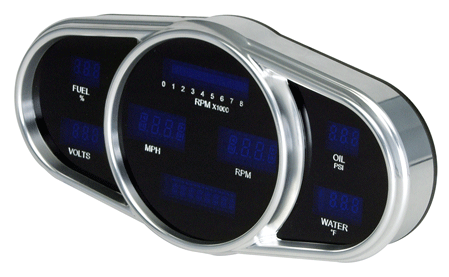

VFD3-1009 side view to show depth of the instrument system:

VFD3-1009 instrument system w/ control box and senders:





VFD3 Included Sensors

System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take approx 1-3 weeks to build the metric version.

Please scroll through listing below for more information on the system.





Specifications

Digital Gauges
Speedometer
0-255 MPH (optional metric version: 0-255 km/h)

Tachometer
0-17,500 RPM

Oil Temperature
0-99 PSI

Water Temperature
0-300°F (optional metric version 0-150°C)

Fuel Level
0-99%

Voltmeter
8-17 VDC

Standard Colors
Blue or Teal
Digital Message Centers
Standard Displays
Odometer (One Time User Settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)

Performance Meters
0-60 MPH Timer (0-100 km/h)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges
Speedometer (0-255 MPH/kmh) opposite scale of main speedometer.
Built-In Indicators
Indicators
Turn Signals (Left/Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On / On & Engaged, when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor is required, sold separately, GSS-2000 is NOT included)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

VFD3 Included Sensors

Water Temperature
1/8" NPT, ground isolated sensor with a 10ft harness.

Oil Pressure
1/8" NPT, solid state sensor with a 10ft harness.

Cable Drive Speed Sensor/Generator
Replaces Ford and/or GM style speedometer cables with a 10ft harness.

Bushings
Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration
Push Button
Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Limited Lifetime Warranty through manufacturer, see installation manual for details
