OR with BLACK bezel:

SLX-01-6 dimensions:

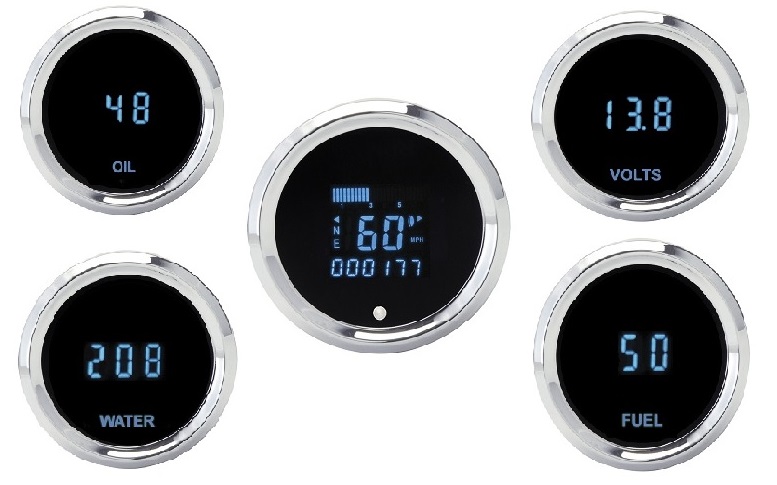

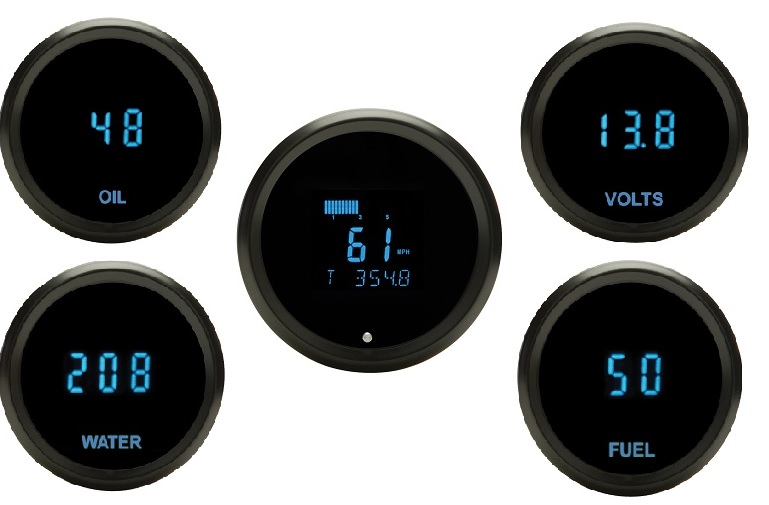

This listing is for one SLX-50-1 Solarix Series, 5 Gauge Kit from Dakota Digital, with either a BLACK or a CHROME bezel.

Dakota Digital Solarix Series instruments offer a high brightness, vibrant blue vacuum fluorescent displays providing a lifetime of trouble free use. Solarix instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!

The 3-3/8" Speedometer and Tachometer incorporate a full character readout that provides an information center showing not only odometer and trip odometer, but also a gear shift position indicator, performance analysis such as 0-60 times, high speed or RPM recall, and menu driven set up and calibration routines. The instruments mount and wire just like their analog counterparts. Easy to install, user friendly to set up, and designed to accurately display vital information, these instruments are truly a breakthrough in digital instrumentation technology.

Kit Contains:

* SLX-01-6 Performance Speedometer/Tachometer (User Selectable MPH or KPH)
* SLX-03-1 Oil Pressure
* SLX-04-1 Water Temperature (°F or °C)
° * SLX-05-1 Voltmeter
* SLX-06-1 Fuel Level

SLX-06-1 has a 3-3/8" diameter housing and the following have 2-1/16" housings: SLX-03-1, SLX-04-1, SLX-05-1, and SLX-06-1.

This listing is for an Odyssey Solarix Series gauge, with BLUE display. You can choose whether you would like the black or chrome bezel. Also available in a separate listing is the Odyssey Series II gauge with TEAL display, with a black or chrome bezel.

Included in this 5 gauge kit:

SLX-01-6 Performance Speedometer / Tachometer

This combo is truly revolutionary, offering a fully functional speedometer, tachometer, gear shift indicator, odometer, trip odometer and all the necessary indicators including turn signals, high beam and several others! Built inside a 3-3/8" housing, this is a perfect replacement for an existing speedometer while adding a wealth of modern features and the stellar performance you would expect from Dakota Digital (MPH/KPH selectable).

• Adjustable 199 MPH speedometer calibration is adjustable for nearly any gearing or tire size combination.
• User selectable MPH or KPH.
• Compatible with both electronic and cable drive applications.
• Odometer with two resettable trip odometers.
• Resettable Miles to Service with warning (user settable countdown) and Hour meter.
• Quick response bar graph tachometer with adjustable shift point warning.
• Easy Tachometer calibration for a wide range of cylinder combinations from 1- 15 cylinders without the use and hassle of bulky coils.
• Gear Position Indicator compatible with Automatic transmissions with the optional sender GSS-2000 (sold separately) and Manual 3- 6 speed transmissions (no additional parts required).
• Adjustable shift point indicator with warning and output for external shift light (external shift light not included).
• Various indicators can also be displayed such as Turn Signal, High Beam, Neutral, Low Oil Pressure, Low Voltage and Security Indicators.
• "Wait to start" / "Check Engine" light.
• Several performance calculations include: 0- 60 time, high speed & high RPM recall, 1/4 mile time and speed.
• Easy push button calibration.

*Dakota Digital Instrument systems are normally shipped from the factory with "0" miles on the odometer. If you would like mileage added to the odometer, this can be done at the factory for a charge of $25.

SLX-03-1 Oil Pressure Gauge

Range: 0- 150 psi
Resolution: 1 psi

SLX-04-1 Water Temperature Gauge

Range: 0- 300°F or 0- 150°C
Resolution: 1°F or 1°C

SLX-05-1 Voltmeter Gauge

Range: 0- 17.0 VDC
Resolution: 0.1 VDC

SLX-06-1 Fuel Level Gauge

Range: 0- 99%

Gauge preset to work with the following fuel senders resistance ranges:

Sender Type                              Empty Resistance                         Full Resistance

GM30                                                   0ohms                                              30ohms

GM90                                                   0ohms                                              90ohms

GM250                                               40ohms                                            250ohms

Ford10                                               73ohms                                              10ohms

Ford150                                             20ohms                                            150ohms

VDO                                                    10ohms                                             180ohms

Stewart Warner/Sun                       240ohms                                             33ohms

Import                                                112ohms                                               4ohms

Sensor SEN-06-1 available for universal applications, fits most fuel tanks (sold separately).

Oil Pressure, Water Temp and Speed senders included. Fuel level gauge reads OEM or aftermarket sensor in most applications.
