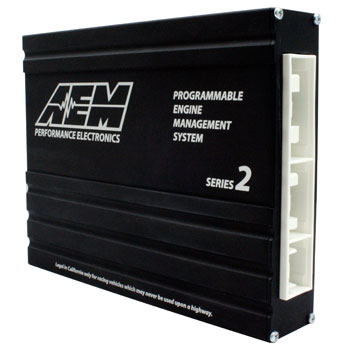

Series 2 Plug & Play Engine Management Systems
AEM's new Series 2 complete engine control system that plugs into the factory harness and uses the factory sensors.
Legal in California only for racing vehicles which may never be used upon a highway.
This product fits the following vehicles:
- 1990 to 1994 Eagle Talon TSi 2.0L Turbo
- 1990 to 1994 Mitsubishi Eclipse GST 2.0L Turbo
- 1990 to 1994 Mitsubishi Eclipse GSX 2.0L Turbo
- 1990 to 1994 Mitsubishi Galant VR4 2.0L Turbo
- 1989 to 1994 Plymouth Laser RS Turbo 2.0L Turbo
- 1989 to 1994 Plymouth Laser RS Turbo AWD 2.0L Turbo
| Outputs |
|
| Injector Outputs |
4 Peak & Hold, 8 Saturated |
| Coil Outputs |
4 |
| Selectable direct drive or 0-5V Coil Output |
Yes |
| Direct plug in, no jumper harness required |
Yes |
| General purpose LS outputs |
12 |
| General purpose HS outputs |
4 |
| Individual cylinder ignition trims |
Yes |
| Individual cylinder fuel trims |
Yes |
| Inputs |
| Trigger inputs (Ref/Sync) |
4 |
| Analog voltage inputs |
18 |
| Configurable Analog/RTD/Thermister inputs |
4 |
| Switch inputs |
5 |
| Lambda inputs |
2x |
| Knock sensors |
2 |
| User adjustable knock sensor center frequency |
Yes |
| Communication |
| USB comms |
Yes |
| RS232 comms |
Yes |
| Communication cables included |
Yes |
| Fully enabled editing/logging software included |
Yes |
| CAN bus equipped |
Yes |
| RS232 datastream output |
19 ch |
| CAN datastream output |
19 ch |
| Communicates with AIM Dash/Dataloggers |
Yes |
| Communicates with Racepak Dash/Dataloggers |
Yes |
| DATA Acquisition |
| Internal data logging |
1 MB |
| Maximum internal logging rate (per channel) |
250 Hz |
| PC logging |
Yes |
| Data analysis using AEMLog |
Yes |
| Functions and Features |
| All channels/maps/tuning options unlocked |
Yes |
| Boost control |
Yes |
| Groundspeed based boost target |
Yes |
| Staged injection |
Yes |
| Ground speed limiting |
Yes |
| Rate of Acceleration Control |
Yes |
| Overrun boost enhancement (anti-lag) |
Yes |
| Gear change ignition cut (shift-without-lift) |
Yes |
| Password protected calibrations |
Yes |
| Fuel & Ignition rev limiters |
Yes |
| "In cockpit" global fuel trim capability |
Yes |
| Gear dependent shift light |
Yes |
| Evap/Purge function |
Yes |
| DC Motor control |
2 Ch |
| Software definable "virtual" switch inputs |
2 |
| EGT Based fuel trims |
Yes |
| Maximum boost limit |
None |
| Physical Dimensions |
| Length |
192 mm |
| Width |
150 mm |
| Height |
37 mm |
| Finish |
Black Anodized |
Product Description:
