AEM Series 2 Plug & Play EMS Engine Management System 04 Impreza WRX STi 30-6820

Price: $1,638.00
Retail: $1,820.00
You Save: $182.00 (10%)

Detailed Description

Specifications

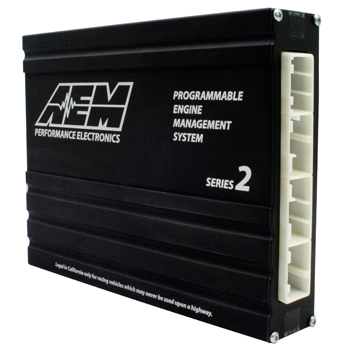

AEM Series 2 Plug & Play EMS - Plug & Play Engine Management System

30-6820

Series 2 Plug & Play Engine Management Systems

AEM's new Series 2 complete engine control system that plugs into the factory harness and uses the factory sensors.

Legal in California only for racing vehicles which may never be used upon a highway.

This product fits the following vehicles:

2004 to 2004 Subaru Impreza WRX STi 2.5L Turbo

Outputs
Injector Outputs	8 Saturated
Coil Outputs	6
Selectable direct drive or 0-5V Coil Output	Yes
General purpose LS outputs	10
General purpose HS outputs	1
Individual cylinder ignition trims	Yes
Individual cylinder fuel trims	Yes
Drive-By-Wire Control	Yes
Inputs
Trigger inputs (Ref/Sync)	4
Analog voltage inputs	23
Configurable Analog/RTD/Thermister inputs	4
Switch inputs	5
Lambda inputs	2x
Knock sensors	2
User adjustable knock sensor center frequency	Yes
Communication
USB comms	Yes
RS232 comms	Yes
Communication cables included	Yes
Fully enabled editing/logging software included	Yes
CAN bus equipped	Yes
RS232 datastream output	19 ch
CAN datastream output	19 ch
Communicates with AIM Dash/Dataloggers	Yes
Communicates with Racepak Dash/Dataloggers	Yes
DATA Acquisition
Internal data logging	1 MB
Maximum internal logging rate (per channel)	250 Hz
PC logging	Yes
Data analysis using AEMLog	Yes
Functions and Features
All channels/maps/tuning options unlocked	Yes
Boost control	Yes
Groundspeed based boost target	Yes
Nitrous Injection	Yes
Staged injection	Yes
Ground speed limiting	Yes
Rate of Acceleration Control	Yes
Overrun boost enhancement (anti-lag)	Yes
Gear change ignition cut (shift-without-lift)	Yes
Password protected calibrations	Yes
Fuel & Ignition rev limiters	Yes
"In cockpit" global fuel trim capability	Yes
Gear dependent shift light	Yes
Evap/Purge function	Yes
DC Motor control	2 Ch
Software definable "virtual" switch inputs	2
EGT Based fuel trims	Yes
Maximum boost limit	None
Physical Dimensions
Length	192 mm
Width	150 mm
Height	37 mm
Finish	Black Anodized

Product Description:

AEM’s Series 2 Programmable Engine Management System is more powerful than its predecessor. In addition to more robust hardware, there are several improvements over the original EMS, noted in the chart below. Like its predecessor, AEM's Series 2 Plug & Play EMS plugs directly into a vehicle's factory ECU harness and requires no additional wiring or hardware. Windows™ compatible software (XP, Vista, Windows7) makes the task of copying, viewing and manipulating data as simple as a click of the mouse. Their new AEMTUNER software is infinitely adjustable software and allows tuners to program virtually any combination of engine control, power adders and auxiliary devices, and accurately delivers proper amounts of fuel and correct ignition timing for any boost level or operating condition.

Legal in California only for racing vehicles which may never be used upon a highway.

SERIES 2 KEY FEATURES

Plugs directly into the factory harness. No rewiring necessary.
Uses all the factory sensors.
Includes start up calibrations.
System is fully enabled and unlocked - Never pay for upgrades!
Context sensitive help eases tuning process.
Maps can be password protected by the tuner to prevent unauthorized usage or sharing.
Runs on Windows-compatible software.
Up to 12 peak and hold injector drivers.
Up to 8 direct-fire coil outputs.
Up to 16 general-purpose outputs.
Up to 8 definable switch inputs.
Up to 4 EGT inputs with fuel control.
1MB of internal data logging.
Electronic boost control.
Full idle control.
Programmable traction control.
Software definable knock control.
Two step launch control.
User configurable soft-cut rev limiters.
Wet or dry nitrous control.
Tune using new USB communication port or serial port.
Works with all AEM gauges.
