Dakota Digital Odyssey Series II Universal Round 6 Gauge Kit Teal Display ODYR-60-1

$724.95 $688.70
(You save $36.25)
(No reviews yet) Write a Review
SKU:
ODYR-60-1
Condition:
New

ODYSSEY SERIES II, 6 Gauge Kit

from Dakota Digital

ODYR-60-1


Small:

Large:

Please note: This item may  have a build time of approx 1-3 weeks before it goes out. You can still purchase it now and it will go out as soon as it is ready. If you would like an updated time estimate, please contact us before you purchase. For domestic orders, it will get sent to you directly from the manufacturer. For international and Canada orders, it will get sent to our shop first, then we will send it out to you.

Description from Dakota Digital:

Dakota Digital Odyssey Series II instruments offer a high brightness, non-glare vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Odyssey Series II instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!

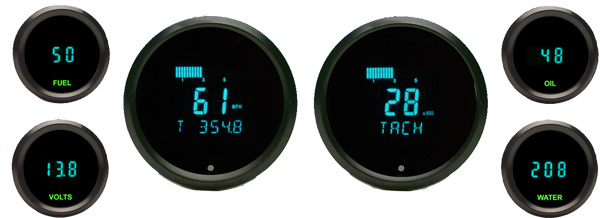

Kit Contains:

* ODYR-01-1 Performance Speedometer (MPH or KPH).
* ODYR-02-1 Performance Tachometer.
* ODYR-03-1 Oil Pressure.
* ODYR-04-1 Water Temperature (°F or °C).
* ODYR-05-1 Voltmeter.
* ODYR-06-1 Fuel Level.

The ODYR-60-1 gauges have a teal display, and you can choose whether you would like black or chrome bezels on your gauges.

Oil Pressure, Water Temp and Speed senders included. Fuel level gauge reads OEM or aftermarket sensor in most applications.

**Dakota Digital Instrument systems are normally shipped from the factory with "0" miles on the odometer. If you would like mileage added to the odometer, this can be done at the factory for a charge of $20.


This listing is for an ODYSSEY Series II gauge, with TEAL display. You can choose whether you would like the black or chrome bezel. Also available in a separate listing is the Solarix series gauge with BLUE display, with a black or chrome bezel.


Included in this 5 gauge kit:

ODYR-01-1 Performance Speedometer (MPH or KPH)



  • Adjustable 199 MPH speedometer calibration is adjustable for nearly any gearing, tire size or combination.
  • Numeric and Bar Graph speedometer display.
  • User selectable MPH or KPH.
  • Compatible with both electronic and cable driven applications.
  • Odometer with two resettable trip odometers.
  • Resettable Mile to Service with warning (user selectable countdown).
  • Various indicators can also be displayed such as: Turn Signals, High-Beam, Check Engine and Low Oil.
  • Gear Position Indicator compatable with Automatic transmissions with the optional GSS-2000 sender and for Manual 3- 6 speed transmissions (ODYR-02-1 is required). GSS-2000 is not included but can be purchased separately in our store.
  • Wait to start"/ "Check Engine" light.
  • Several performance calculations include: High Speed Recall, 0-60 timer, 1/4 mile time and speed.
  • Easy push button calibration.

 ODYR-02-1 Performance Tachometer





  • 0- 17,500 RPM range with 100 RPM resolution.
  • Easy Tachometer calibration for a wide range of cylinder combinations from 1- 15 cylinders without the use and hassle of bulky coils.
  • Compatible with single or dual fire ignitions.
  • Gear position indicator when used with GSS-2000 (sold separately).
  • High RPM Recall.
  • User Selectable Shift Point.
  • Hourmeter.
  • Push button calibration.





ODYR-03-1 Oil Pressure Gauge



Range: 0- 150 psi
Resolution: 1 psi




ODYR-04-1 Water Temperature Gauge



Range: 0- 300°F or 0- 150°C
Resolution: 1°F or 1°C




ODYR-05-1 Voltmeter Gauge



Range: 0- 17.0 VDC
Resolution: 0.1 VDC




ODYR-06-1 Fuel Level Gauge



Range: 0- 99%

Gauge preset to work with the following fuel senders resistance ranges:

Sender Type                              Empty Resistance                         Full Resistance

GM30                                                   0ohms                                              30ohms

GM90                                                   0ohms                                              90ohms

GM250                                               40ohms                                            250ohms

Ford10                                               73ohms                                              10ohms

Ford150                                             20ohms                                            150ohms

VDO                                                    10ohms                                             180ohms

Stewart Warner/Sun                       240ohms                                             33ohms

Import                                                112ohms                                               4ohms

Sensor SEN-06-1 available for universal applications, fits most fuel tanks (sold separately).

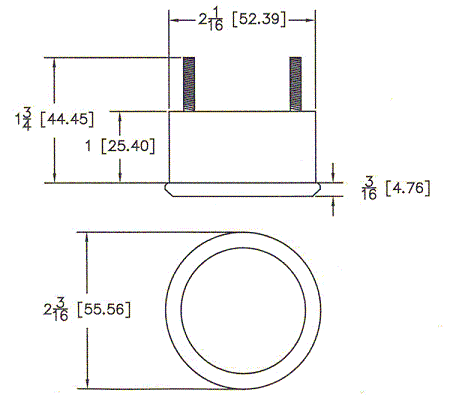

ODYR-01-1 & ODYR-02-1 have a 3-3/8" housing, and ODYR-05-1, ODYR-03-1, ODYR-04-1 & ODYR-06-1 have 2-1/16" housings.

Oil Pressure, Water Temp and Speed senders included. Fuel level gauge reads OEM or aftermarket sensor in most applications.

Don't forget: When making your payment, be sure to specify which bezel you want: black or chrome.


This Dakota Digital item usually has a lead time of 1-3 business days before it gets shipped out. For domestic buyers, your order will get shipped to you directly from the manufacturer.
