Dakota Digital Universal Round 5 Gauge Kit & Senders Teal Display ODYR-50-1

Dakota Digital

MSRP: $719.95
$683.95
(You save $36.00 )
(No reviews yet) Write a Review
SKU:
ODYR-50-1-K
Condition:
New
Adding to cart… The item has been added

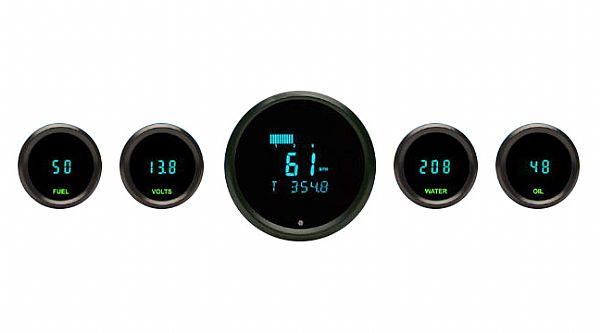

Dakota Digital Odyssey Series II 5 Gauge Kit - ODYR-50-1 (teal display)

ODYR-01-6 dimensions:



All other gauges dimensions:



Dakota Digital Odyssey Series II instruments offer a high brightness, non-glare vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Odyssey Series II instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you've come to expect from Dakota Digital!

Kit Contains:

* ODYR-01-6 Performance Speedometer/Tachometer (MPH or KPH).
* ODYR-03-1 Oil Pressure.
* ODYR-04-1 Water Temperature (°F or °C).
* ODYR-05-1 Voltmeter.
* ODYR-06-1 Fuel Level.

The ODYR-50-1 gauges have a teal display, and you can choose whether you would like black or chrome bezels on your gauges.

ODYR-01-6 Speedometer/Tachometer Combo with a 3-3/8" housing, and the following have 2-1/16" housings: ODYR-03-1, ODYR-04-1, ODYR-05-1, and ODYR-06-1.

Oil Pressure, Water Temp and Speed senders included.

Fuel level gauge reads OEM or aftermarket sensor in most applications.

*Dakota Digital Instrument systems are normally shipped from the factory with "0" miles on the odometer. If you would like mileage added to the odometer, this can be done at the factory for a charge of $25.


This listing is for an ODYSSEY Series II gauge, with TEAL display. You can choose whether you would like the black or chrome bezel. Also available in a separate listing is the Solarix series gauge with BLUE display, with a black or chrome bezel.


Included in this 5 gauge kit:

ODYR-01-6 Performance Speedometer / Tachometer Gauge

This combo is truly revolutionary, offering a fully functional speedometer, tachometer, gear shift indicator, odometer, trip odometer and all the necessary indicators including turn signals, high beam and several others! Built inside a 3-3/8" housing, this is a perfect replacement for an existing speedometer while adding a wealth of modern features and the stellar performance you would expect from Dakota Digital (MPH/KPH selectable).

  • Adjustable 199 MPH speedometer calibration is adjustable for nearly any gearing or tire size combination.
  • User selectable MPH or KPH
  • Compatible with both electronic and cable drive applications.
  • Odometer with two resettable trip odometers.
  • Resettable Miles to Service with warning (user settable countdown) and Hour meter.
  • Quick response bar graph tachometer with adjustable shift point warning.
  • Easy Tachometer calibration for a wide range of cylinder combinations from 1- 15 cylinders without the use and hassle of bulky coils.
  • Gear Position Indicator compatible with Automatic transmissions with the optional sender GSS-2000 (sold separately) and Manual 3- 6 speed transmissions (no additional parts required).
  • Adjustable shift point indicator with warning and output for external shift light (external shift light not included).
  • Various indicators can also be displayed such as Turn Signal, High Beam, Neutral, Low Oil Pressure, Low Voltage and Security Indicators.
  • "Wait to start" / "Check Engine" light.
  • Several performance calculations include: 0- 60 time, high speed & high RPM recall, 1/4 mile time and speed.
  • Easy push button calibration.

ODYR-03-1 Oil Pressure Gauge

Range: 0- 150 psi
Resolution: 1 psi


ODYR-04-1 Water Temperature Gauge

Range: 0- 300°F or 0- 150°C
Resolution: 1°F or 1°C


ODYR-05-1 Voltmeter Gauge

Range: 0- 17.0 VDC
Resolution: 0.1 VDC


ODYR-06-1 Fuel Level Gauge

Range: 0- 99%

Gauge preset to work with the following fuel senders resistance ranges:

Sender Type                              Empty Resistance                         Full Resistance

GM30                                                   0ohms                                              30ohms

GM90                                                   0ohms                                              90ohms

GM250                                               40ohms                                            250ohms

Ford10                                               73ohms                                              10ohms

Ford150                                             20ohms                                            150ohms

VDO                                                    10ohms                                            180ohms

Stewart Warner/Sun                          240ohms                                             33ohms

Import                                              112ohms                                               4ohms

Sensor SEN-06-1 available for universal applications, fits most fuel tanks (not included, sold separately).


Oil Pressure, Water Temp and Speed senders included. Fuel level gauge reads OEM or aftermarket sensor in most applications.
